Wallbarn TPE Perforated Roof Drain Outlet

Code:

WALLBARN-RO-TPE-030-050-160

Brand:

Wallbarn

View full product details

View questions about this product

Length

Pipe Diameter

from

£9.84 Incl. VAT

Earn points

Delivery from: 1-2 Working Days

Shipping costs displayed in basket.

For delivery Tuesday, Nov 5th - order in:

days hrs mins secs

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Mrs Williams

Description

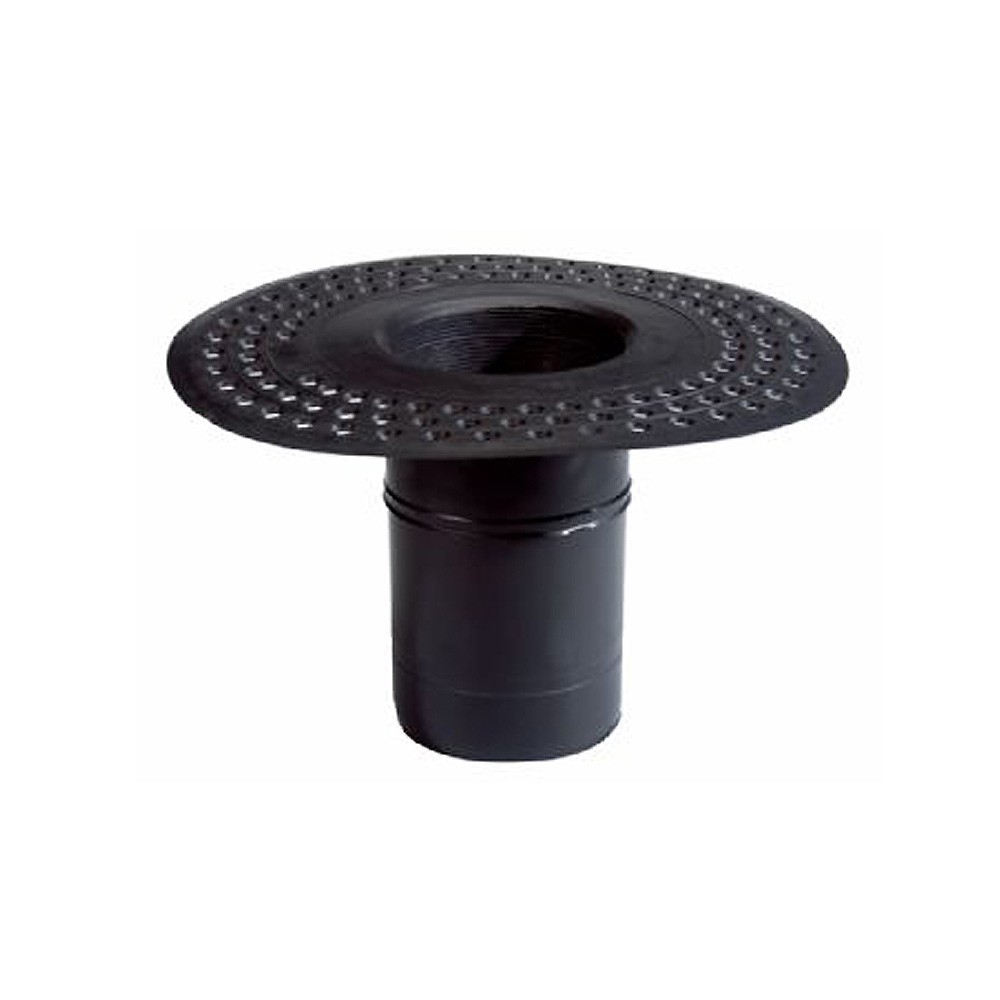

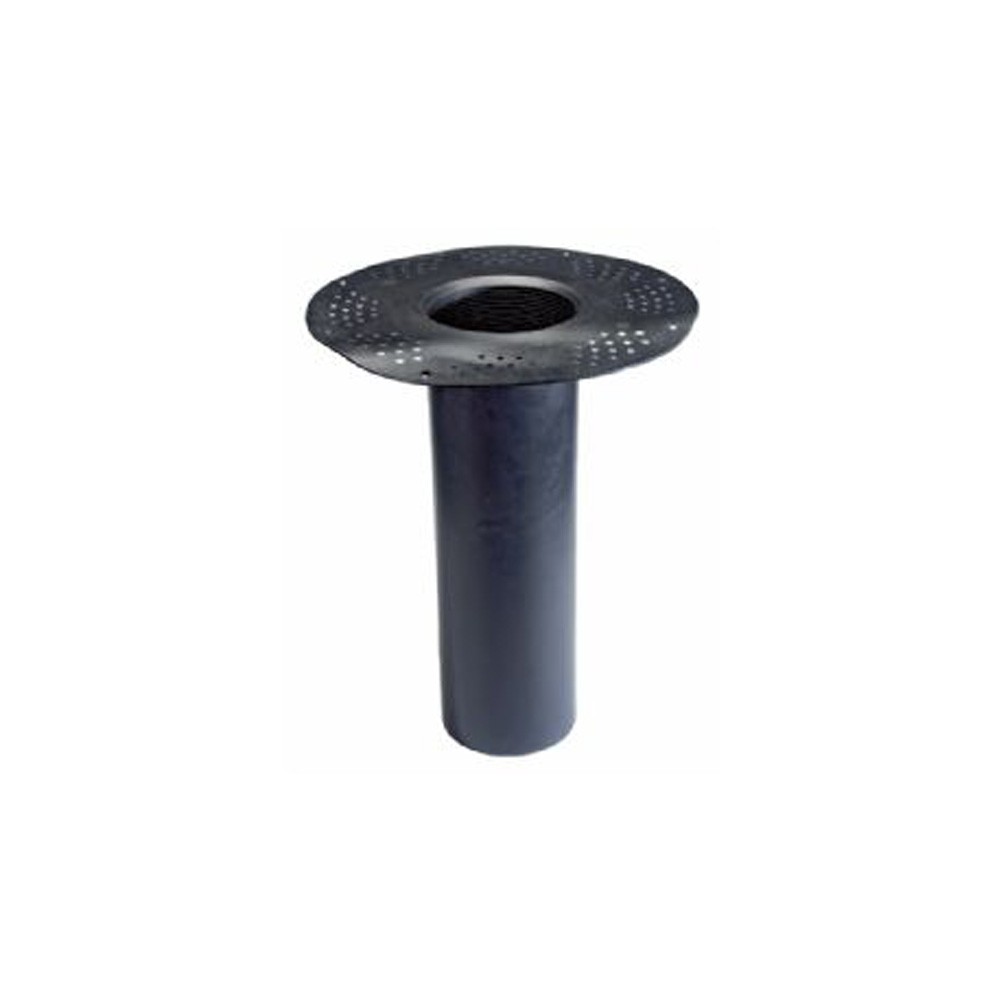

Available in different lengths and diameters, this perforated roof drain outlet from Wallbarn is made of flexible and strong TPE (Thermoplastic elastomer). It works to add a waterproof element to drainage holes on both balconies and roofs that are already equipped with bituminous waterproofing membranes. With resilience to weathering and UV rays, this outlet can withstand temperature changes up to 120°C and resist brittleness in lower temperatures.

Where holes are made in concrete decks, this outlet is easily installed after a layer of waterproof membrane and then coated with a second layer on top of the flange - which has a perforated edge for the membrane to settle in for a secure and sturdy bond. The 240mm shank fits into an HDPE (High-density polyethylene) pipe snuggly and is slightly coned to ease the fit and provide additional stability. Water is prevented from travelling back up thanks to the two rings that emulate a drain tap, and the serrated area allows for a drain guard to join the system.

Features & Benefits: Wallbarn TPE Perforated Roof Drain Outlet

Made from TPE (Thermoplastic elastomer) for durability, resilience, and waterproofing
Installed alongside two layers of a waterproofing membrane
Perforated flange to help bonding
Coned shank with serrated area to ease installation and allow for drain guards
UV stable and able to withstand high (120°C) and low temperatures.

Compatible with SBS (Styrene Butadiene Styrene) and APP (Atactic Polypropylene Membrane) membranes, such as built-up (felt), hot melt, mastic asphalt, and other liquid-applied membranes.

Please note:

Do not allow direct contact with concrete as this can allow water to find its way beneath the outlet and cause damage.
Assure that a layer of membrane is fully bonded to the outlet flange and the first layer for completely watertight bonds.
