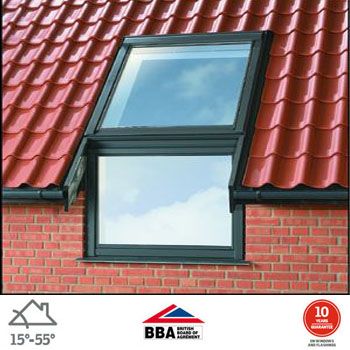

Vertical elements SK36 114cm x 115cm. White painted interior finish and RAL 7016 external finish. 66 pane variant, triple glazed with laminated inner and toughened outer pane. Bottom-hung , opens inwards for added ventilation and cleaning. This is a triple glazed bottom hung ... Read More
Vertical elements SK36 114cm x 115cm. White painted interior finish and RAL 7016 external finish. 66 pane variant, triple glazed with laminated inner and toughened outer pane. Bottom-hung , opens inwards for added ventilation and cleaning.
This is a triple glazed bottom hung vertical element with laminated glazing and has a uValue of 1.0.
New generation features
More daylight : up to 18% larger pane area.
Slim profile : slim profiles and larger pane means more glass and less frame.
Thermo technology : innovative use of high performance insulation material.
More comfort : a more modern and attractive design with excellent ventilation and operation control.
Control bar : new design of the control bar with functionality icons.
Exterior design : improved exterior finish with a softer and more discrete expression.
Click-on covers : fewer screws with the new click-on covers.
Top cover : slimmer top cover.

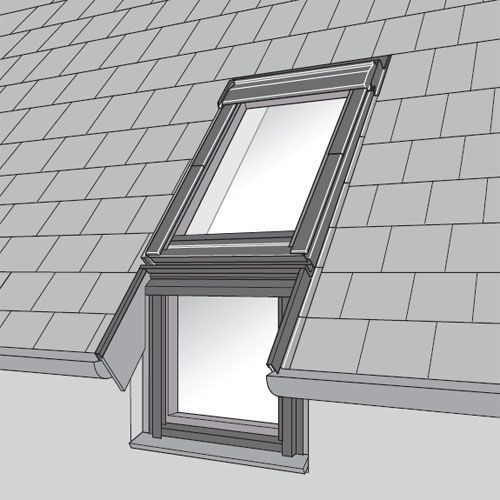

Vertical elements
Combine vertical and sloping lacquered natural pine roof windows to extend the possibilities for view and daylight. Ideal for storey and a half houses.
Avaliable in single, twin and triple combinations each with an 18mm gap.
Select your pine window roof window(s) then combine them with a vertical element. Please note vertical elements are bottom hung and open inwards for added ventilation and clearing.
Finally select an the appropriate flashing system for your roof window size, combination and roof covering. Please note VELUX recommend the use of an EBY trimmer for added support and a harmonious internal finish if using a twin or triple combination.
Lacquered natural pine finish painted white - GGL
• Pine core painted white.
• Excellent value for money and easy to install.
• Made from High quality natural pine.
• Protective triple coat clear lacquer helps to preserve the timber of the window.
• Easy to use top control bar for opening and even ventilation purposes when the window is closed.
• Rotates 180° for easy cleaning.
- - 66 triple glazing
• Triple glazed.
• Laminated inner pane.
• Toughened outer pane.
• Anti-dew and easy to clean coating to keep windows clean for longer.
Properties
• 10 year guarantee on windows and flashings.
• Suitable for roof pitches between 15 and 55°.
• BBA certified.
