VELUX Pro+ EKN 4021E Recessed Insulated Coupled Slate Flashing

Name: VELUX Pro+ EKN 4021E Recessed Insulated Coupled Slate Flashing
Brand: VELUX
SKU: VELUX-EKN-4021E

Code:

VELUX-EKN-4021E

Brand:

VELUX

View full product details

View questions about this product

Size

from

£452.00 Incl. VAT

Earn points

Delivery from: 2-4 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

10% off VELUX blinds when you buy a VELUX window!

USE CODE: BLINDS10

Description

Including a BDX insulation collar, a BFX underfelt collar, bearing beams and cover plates, this VELUX Pro+ EKN 4021E Insulated Coupled Slate Flashing is specifically designed to accommodate two side-by-side VELUX window installations, with a 100mm gap between the two window frames. Most commonly used with roofing slates up to 8mm thick, this flashing is also compatible with other flat roofing materials, such as roofing felt and membranes.

Suitable for roof pitches from 20° to 90°, this recessed flashing means your VELUX windows will sit 40mm deeper within your roof compared to a standard flashing, creating a more streamlined and sleeker appearance. To help blend in with your windows, the discreet VELUX Pro+ EKN 4021E flashing's aluminium grey finish will match perfectly with the outer frame colour of your two windows.

Features & Benefits: VELUX Pro+ EKN 4021E Recessed Insulated Coupled Slate Flashing

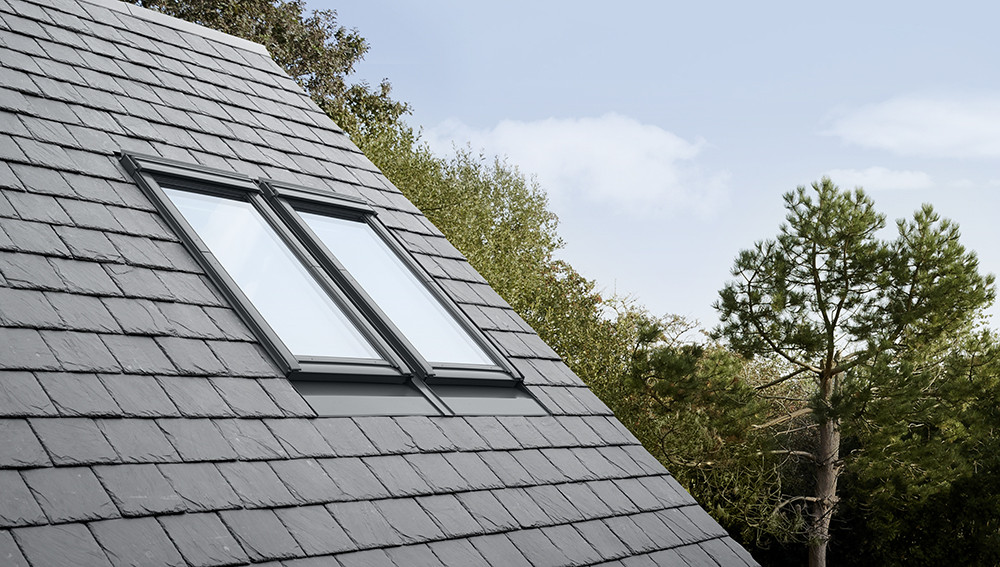

A recessed flashing for two VELUX windows installed in a coupled combination, side-by-side
Will create a 100mm gap between the two window frames
Suitable for roofing slates, membranes and roofing felt up to 8mm thick
Suitable for roof pitches of 20° to 90°
The window sits 40mm deeper in your roof for a more streamlined look
BFX collar provides a weathertight seal between roof material and window
BDX insulation collar will insulate around your window frame
Integrated water channels aid safe water drainage from your roof
Also includes bearing beams and cover plates

This flashing, made from corrosion-proof materials, features built-in water channels designed to channel rainwater down the sides of your VELUX window and away into the gutters below. This is to prevent water from pooling above the window and potentially damaging the flashing over time.

Please note:

You are advised to remove leaves and other debris from your flashing at least once a year to allow rainwater to run freely from your VELUX window.

Specification

Dimensions

Size CK02 - 55 x 78cm
CK04 - 55 x 98cm
CK06 - 55 x 118cm
FK04 - 66 x 98cm
FK06 - 66 x 118cm
FK08 - 66 x 140cm
MK04 - 78 x 98cm
MK06 - 78 x 118cm
MK08 - 78 x 140cm
MK10 - 78 x 160cm
MK12 - 78 x 180cm
PK04 - 94 x 98cm
PK06 - 94 x 118cm
PK08 - 94 x 140cm
PK10 - 94 x 160cm
SK06 - 114 x 118cm
SK08 - 114 x 140cm
SK10 - 114 x 160cm
UK04 - 134 x 98cm
UK08 - 134 x 140cm Width 1140mm
1340mm
550mm
660mm
780mm
940mm

Details

Code EKN Height 780mm
980mm
1180mm
1400mm
1600mm
1800mm Thickness Up to 8mm Roof Covering Slate

Flashing Type Combination Flashing
