VELUX GPL MK08 SD5J2 Conservation Window for 90mm Tiles - 78cm x 140cm

Code:

GPL MK08 SD5J2

Brand:

VELUX

This GPL MK08 SD5J2 top hung window from VELUX includes an internal white painted finish and an external black profile and glazing bar. You can blend both the present and the past as the white painted finish complements modern interiors while the black profile matches conserva... Read More

View full product details

View questions about this product

£916.00 Incl. VAT

Earn points

Est. Delivery: 2-4 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Gavin Beesley

Description

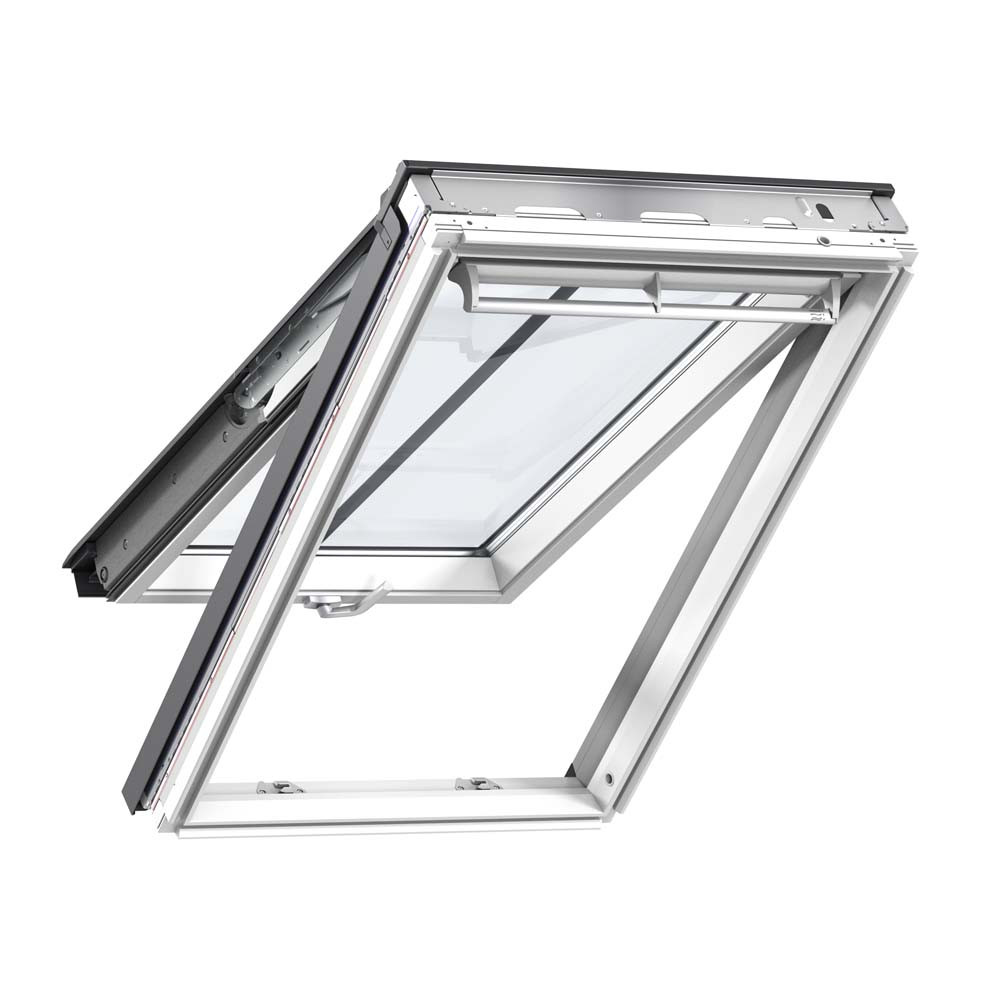

The top hung window allows for views that are unobstructed. It can be operated easily with the bottom handle and features a top control bar with integrated ventilation for fresh air despite the window being closed. The centre pivot function is ideal for cleaning the window on the outside. All you have to do is rotate the window by 180° and place it into position with the built-in barrel bolt to keep it steady. High-quality pivot hinges result in seamless operation while homes retain warmth due to the Thermo-Technology™, which transfers less energy. Your installations can save on time without skipping safety, thanks to the clever click-on covers.

Features & Benefits: VELUX GPL MK08 SD5J2 Conservation Window for 90mm Tiles - 78cm x 140cm

For roof pitches from 20° up to 55°
Includes a white painted interior and a black exterior, in turn suiting both modern internal aesthetics and traditional external appearances
Double glazed window with a 1.3W/m²K uValue
Features recessed flashing that suits flat or profiled tiles up to 90mm thick
Manual operation is easy
Opens outwards to a maximum angle of 45°
10-year guarantee on windows and flashings

Alongside an EDJ recessed flashing that suits tiles that have profiles up to 90mm thick, the roof window is accompanied by an underfelt collar (BFX) and an insulation collar (BDX). The underfelt collar forms a seal between the roof and the window that is watertight, while the insulation collar reduces cold bridges and heat loss. The EDJ flashing supplies a streamlined finish to windows that are 40mm deeper into the structure, resulting in minimal protrusion above the roofline. Brackets can be installed at the blue line level.

With double glazing (70), this window includes helpful attributes. It includes 35dB of sound insulation and a rain noise reduction that quietens any heavy rainfall against the glass. The UV filter keeps fading furnishings to a minimum when left in harmful sun rays, and the toughened glass makes sure that the exterior pane is higher in strength. As a result, it can better withstand external environmental force. The safety lamination prevents the spread of scattered glass if windows find themselves broken and damaged.

Standards & Certification

BBA certified

Please note:

This conservation window comes with a glazing bar and a recessed flashing kit for tiles up to 90mm thick (EDJ).
Special springs can be fitted to these windows for use with roof pitches between 55° and 75°. If this is desired, please specify it in the 'Special Instructions' box at checkout.

Specification

Dimensions

Size MK08 - 78 x 140cm Width 780mm

Details

Code GPL Height 1400mm Type Top-hung Finish White Painted

Operation Manual Glazing Double Glazing Pitch 20 - 90 degrees Flashing Type Conservation Flashing U-Value 1.3

Downloads

Questions & Answers

Question:

Could you explain what it means by 90mm tiles? Also, could you confirm that this unit includes all the flashing and I, therefore, don't need to purchase additional items?

Answer:

90mm refers to the height of the tile on the roof (90mm covers 99% of most modern tiles) - This part number covers the window and the flashing - no other items are needed
