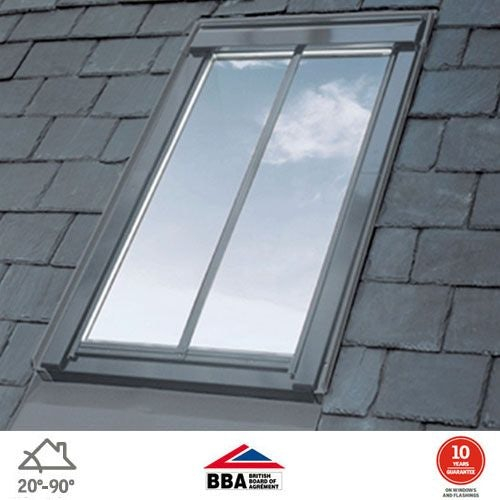

VELUX GGL CK04 Solar Conservation Window for 8mm Slate - 55cm x 98cm

Code:
GGL CK04 387030
Brand:

VELUX GGL CK04 387030 Pine Centre Pivot Solar INTEGRA Conservation Window with 8mm Slate Flashing - 55cm x 98cm This is a double glazed centre pivot window with laminated glazing and has a uValue of 1.3. Please note this conservation window comes with a glazing bar, insulati... Read More

Create a wishlist

"First class service"

LOUISE WRIGHT

Description

VELUX GGL CK04 387030 Pine Centre Pivot Solar INTEGRA Conservation Window with 8mm Slate Flashing - 55cm x 98cm

This is a double glazed centre pivot window with laminated glazing and has a uValue of 1.3.

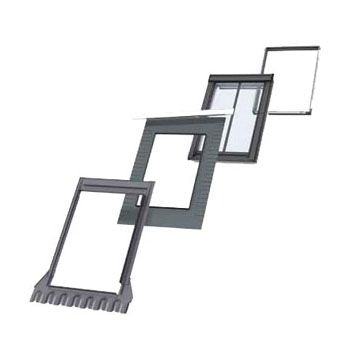

Please note this conservation window comes with a glazing bar, insulation collar (BDX) an underfelt collar (BFX) and a recessed flashing kit for slate up to 8mm thick (EDN).

New generation features

More daylight: up to 18% larger pane area.
Slim profile: slim profiles and larger pane means more glass and less frame.

Thermo technology: innovative use of high performance insulation material.
More comfort: a more modern and attractive design with excellent ventilation and operation control.
Control bar: new design of the control bar with functionality icons.
Exterior design: improved exterior finish with a softer and more discrete expression.
Click-on covers: fewer screws with the new click-on covers.
Top cover: slimmer top cover.

Centre pivot conservation roof windows

When planning details that a window of traditional appearance is required, conservation roof windows should be considered. All of our conservation roof windows have the technically superior features of a VELUX roof window in a traditional black conservation style.

  • Black external profiles and glazing bar - RAL colour 9005.
  • Recessed installation for slate roofs.

Solar INTEGRA roof windows

  • Powered by the sun.
  • PV solar cell on external window frame requires direct exposure to sunlight.
  • No need to plug into a power supply which makes installation even quicker and easier.
  • Built in rain sensor closes the window automatically in the even of rain.
  • Provides useful remote opening which is ideal for hard-to-reach windows.
  • Fully programmable control pad can operate roof windows, blinds, awnings and roller shutters either individually or in groups.
  • Control pad can be used anywhere in the building.
  • Battery back-up avaliable.

Lacquered natural pine finish - GGL

  • Ideal for a traditional interior.
  • High quality natural pine.
  • Protective triple coat clear lacquer helps to preserve the timber of the window.

- - 70 laminated glazing

  • 6.4mm laminated inner pane offers additional safety.
  • Offers improved noise reduction compared to - -34 and - -59 glazing.
  • 4mm toughened outer pane with low-E coating.

Properties

  • 10 year guarantee on windows and flashings.
  • Suitable for roof pitches between 20 and 90°.
  • BBA certified.

Dimensions

Size CK04 - 55 x 98cm Width 550mm

Details

Code GGL Height 980mm Finish Pine Operation Solar
Glazing Double Glazing
