VELUX GDL MK19 SK0W224 Roof Balcony System for Tiles - 166cm x 252cm

Code:

GDL MK19 SK0W224

Brand:

VELUX

Free UK Delivery

Double CABRIO Roof Balcony System with Triple Glazing and a 120mm Universal Tile Flashing This is the new generation white painted version of the triple glazed CABRIO roof balcony system and has a uValue of 1.2. VELUX CABRIO roof balcony + 1x GPL Top-hung & 1x GIL FIXED el... Read More

View full product details

View questions about this product

Create a wishlist

Buildsmart Brickwork Ltd

Description

Double CABRIO Roof Balcony System with Triple Glazing and a 120mm Universal Tile Flashing

This is the new generation white painted version of the triple glazed CABRIO roof balcony system and has a uValue of 1.2.
VELUX CABRIO roof balcony + 1x GPL Top-hung & 1x GIL FIXED element. Flashings for tiles up to 120mm in profile.
If you require a Pine CABRIO roof balcony system, please call our sales team.

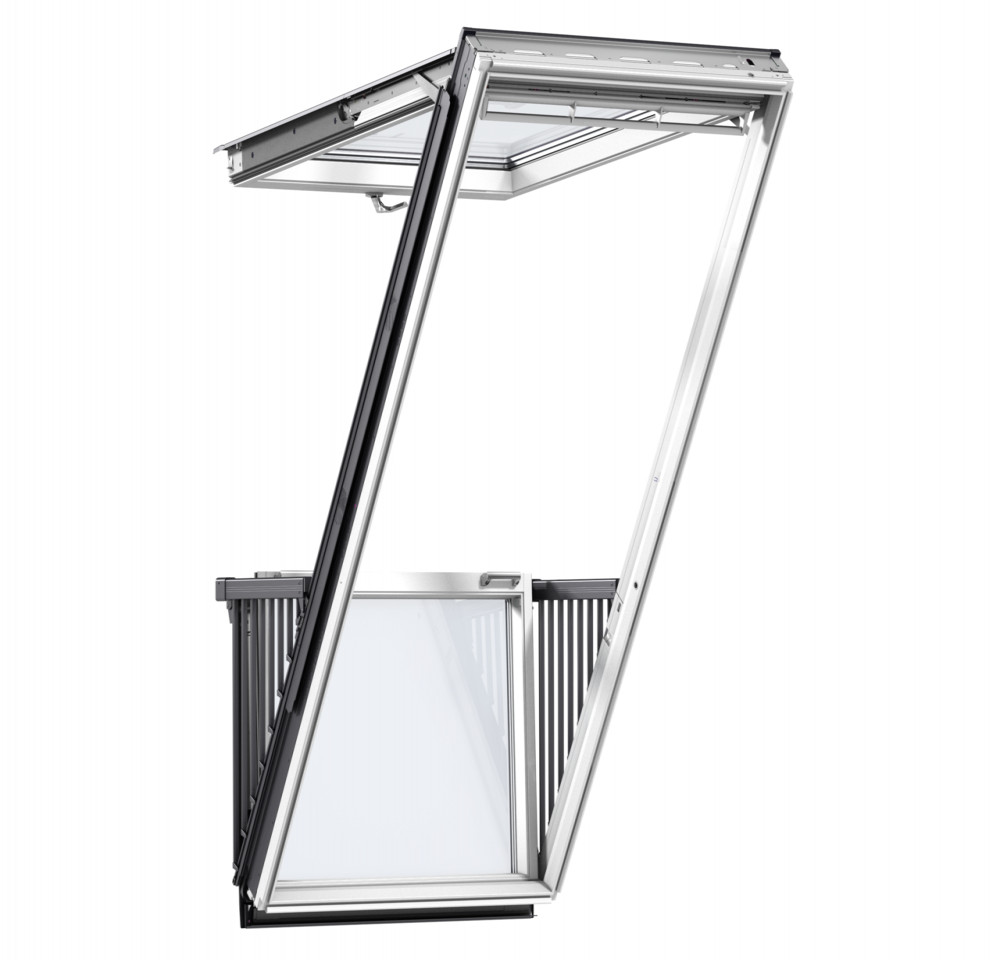

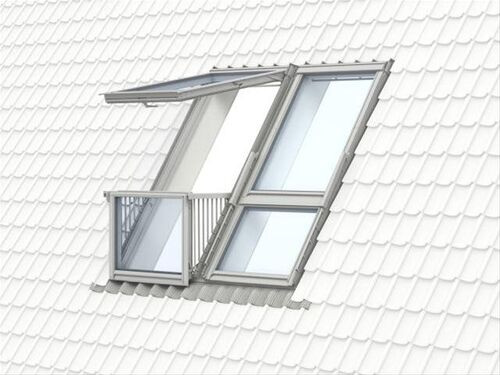

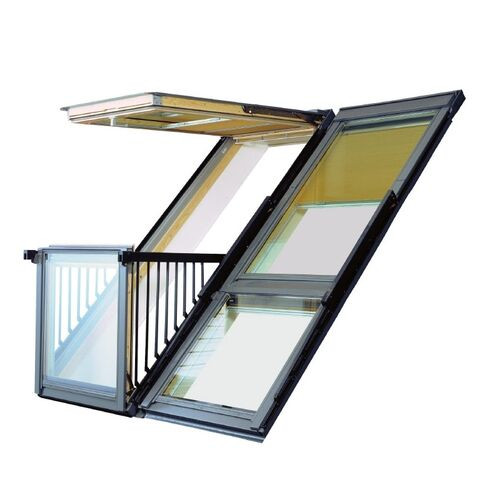

VELUX CABRIO roof balcony system

The VELUX CABRIO roof balcony turns a roof window into an instant balcony in seconds. A great way to add value and a real wow factor to a property.

The upper section is top hung and opens outwards whilst the bottom section unfolds into a glazed balcony with side railings.

Can be easily combined with top hung and fixed sloped windows to increase the daylight and view.

Now featuring triple glazing as standard which ensures an energy efficient installation.

Easy-to-clean coating on the toughened outer pane keeps the glazing cleaner for longer.

All upper top hung roof windows rotate 180° and locks in place for easy cleaning of the outer pane.

Size of blinds required for the CABRIO Roof Balcony System

Upper window - MK10
Lower window - M04

Lacquered natural pine finish painted white - GGL

Pine core painted white
Excellent value for money and easy to install
Made from High quality natural pine
Protective triple coat clear lacquer helps to preserve the timber of the window
Easy to use top control bar for opening and even ventilation purposes when the window is closed
Rotates 180° for easy cleaning

- - 66 triple glazing

Triple glazed
Laminated inner pane
Toughened outer pane
Anti-dew and easy to clean coating to keep windows clean for longer

Properties

10 year guarantee on windows and flashings
Suitable for roof pitches between 35 and 53°
BBA certified

Specification

Dimensions

Size MK19 - 78 x 252cm Width 166cm

Details

Code GDL Type CABRIO balcony Finish White Painted Operation Manual

Glazing Triple Glazing Pitch 35 - 53 degrees U Value 1.2

Downloads

Questions & Answers

Question:

Can you guide me to the size of opening in the roof required for the installation of x1 cabrio balcony 78cm wide combined with a lower fix window and top hung window 78cm wide.

Answer:

Have a look at this link

https://www.roofingsuperstore.co.uk/user-guides-brochures/velux-gdl-installation-guide-1579775929.html

Question:

Is the double balcony available in black as shown one of your pictures - actually I would like Wal colour 7021 - Almost black - inside and outside . Please advise - Many thanks - Sunita Rickman

Answer:

They are dark grey on the outside and white on the inside
