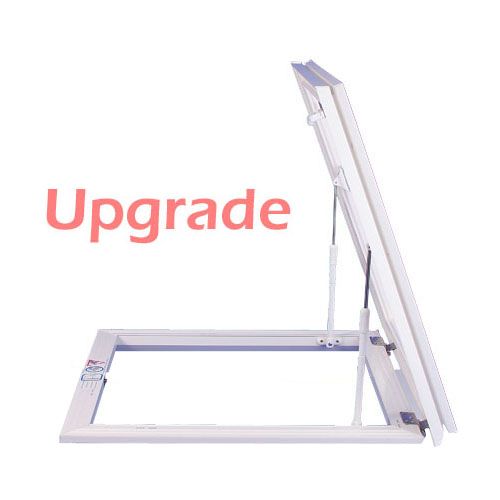

UPGRADE - S4 Access Hatch Frame - 800mm x 800mm

UPGRADE - S4 Access Hatch Frame - 800mm x 800mm

Description

Em-Domes are quality thermoformed rooflights, designed to make optimum use of natural light.

They are offered in a wide range of sizes, shapes and glazing options to meet virtually any specifier and client requirement.

Features

• Rooflight becomes means of access to roof.

• Can be installed to existing upstand with Em-Collar.

• Em-Curb upstands can be incorporated.

• Provides a safe access route.

• Telescopic gas or friction struts.

• Remote operation units available.

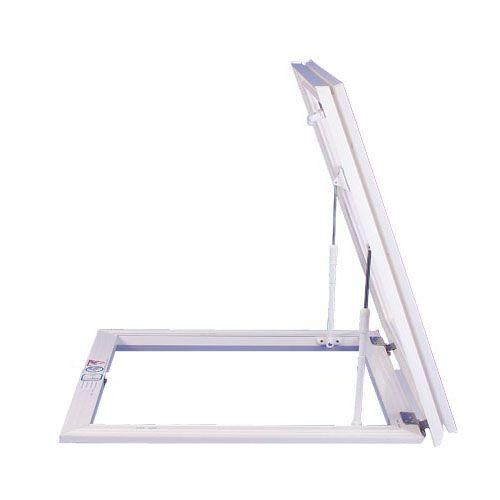

Where the rooflight is to be used as a means of access on to a roof the hinged access hatch frame opens to 90° to provide a safe route for personnel and equipment, often avoiding the need to provide other external facilities.

The access frame can be specified for mounting either direct to a builder’s curb with Em-Collar and T-Collar adaptors or in conjunction with Em-Curb upstands.

Standard features include a locking handle to secure the rooflight in the closed position and telescopic struts to hold the rooflight in the open position.

The telescopic struts are either gas assisted hydraulic operation or have adjustable friction control and can be set according to dome weight and prevailing site conditions.

Access hatches are not recommended in sizes larger than 1160mm square or 860 x 1460mm rectangular.

Remote electric operation opening units are also available (refer to our sales team on 01752 692760).

High security screwbolts

Unique to the Em-Dome are the patented high security screwbolts, supplied factory fitted as standard to all units.

Once installed, the fixing cannot be removed using common tools.

The screwbolt provides a high level of resistance to tampering or forced entry.

The fixing screw or bolt is sleeved within the body of the screwbolt which avoids pressure being exerted on the rooflight glazing as the fixing is tightened.

This virtually eliminates the risk of stress fractures caused by over-tightening.

Thermoformed Glazing

Em-Domes are thermoformed from polycarbonate sheet and are available in single, double and triple skin plus certain sizes available in quad skin or Eco multiwall construction.

Polycarbonate is virtually unbreakable, with an impact strength up to 250 times greater than glass.

Glazing Options

Em-Domes can be supplied in clear, opal diffused, bronze or ‘Heat Reflect’ (which reflects up to 68% of the heat radiation) glazing.

All polycarbonate Em-Domes have a minimum 3 mm thick glazing.

Acrylic Em-Domes have a minimum 3mm outer skin.

Inner skin thickness varies according to the dome size.

Em-Curb Upstands

Em-Curbs are designed to be used in conjunction with Em-Dome rooflights to provide a thermally broken interface which in turn helps to improve the overall thermal efficiency of the roof.

Em-Curbs represent excellent value for money, enhance the overall appearance of the rooflight and are prefinished white internally, therefore requiring no further decoration.

Splayed Em-Curb upstands give an excellent spread of light through the room whilst the vertical units are available where the dimensions of the roof aperture need to be maintained.

The standard Em-Curb is made from extruded white PVC-u.

The multi-chambered construction gives an exceptionally robust and thermally efficient performance.

This curb is suitable for most roof finishes and is available in heights of 150, 300 and 350mm with other heights also available.

All ventilation, access hatch and smoke vent options can be used in conjunction with Em-Curbs.

Em-Curbs can also be supplied in GRP which have integral 10mm polyurethane foam insulation and robust dome fixing and mounting flanges.

They can be used with most roofing materials.

Note

This is an upgrade for the Em-Dome 800mm x 800mm Double Glazed Clear Fixed Dome & Curb.
