Ubbink OFT/1F Flat Roof Vent/Terminal - 110mm

Code:
100000169931
Brand:

Suitable for soil and vent systems, Ubbink's OFT/1F Flat Roof Vent/Terminal is the perfect option for flat roof extraction. It is also usable for natural (passive) or mechanical ventilation installations. Ideal for a felt roof covering, providing a large free vent area with a ... Read More

£30.36 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"First class!!!"

ALAN FUMAGALLI

Description

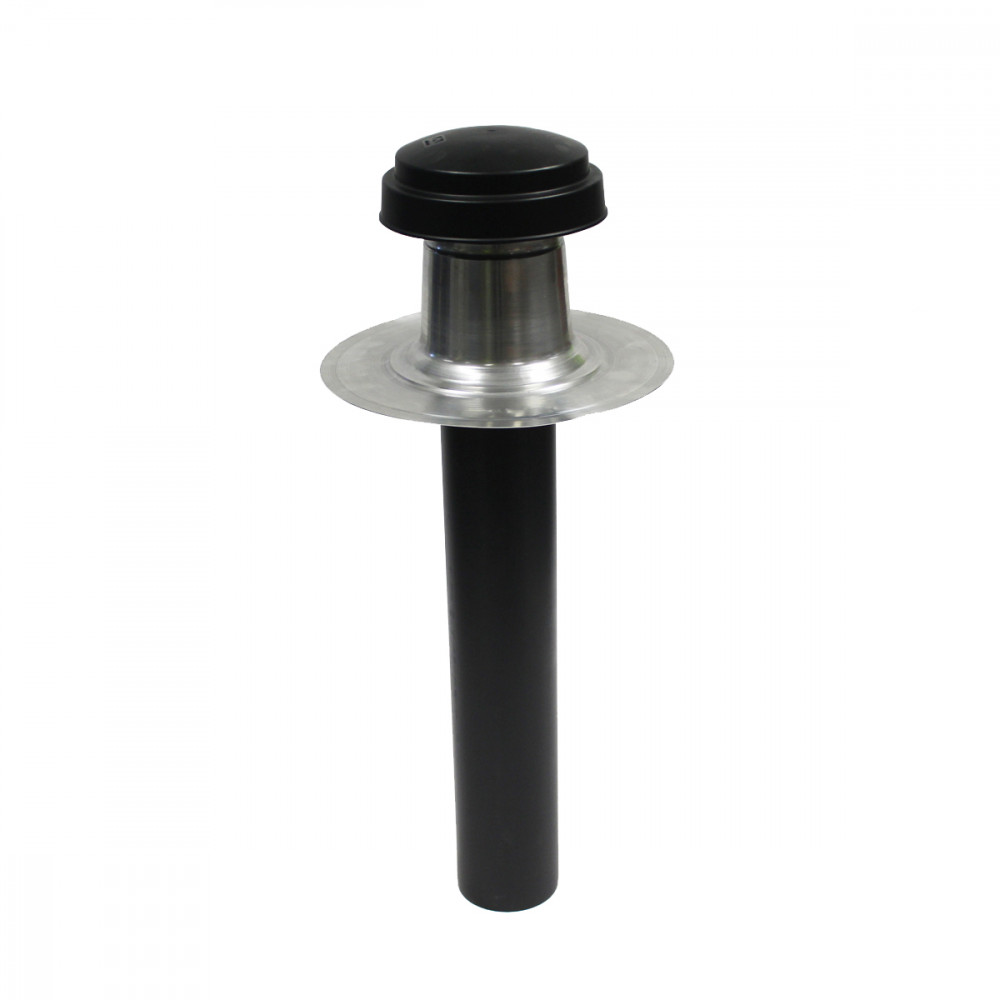

Suitable for soil and vent systems, Ubbink's OFT/1F Flat Roof Vent/Terminal is the perfect option for flat roof extraction. It is also usable for natural (passive) or mechanical ventilation installations. Ideal for a felt roof covering, providing a large free vent area with a low Pascal resistance figure.

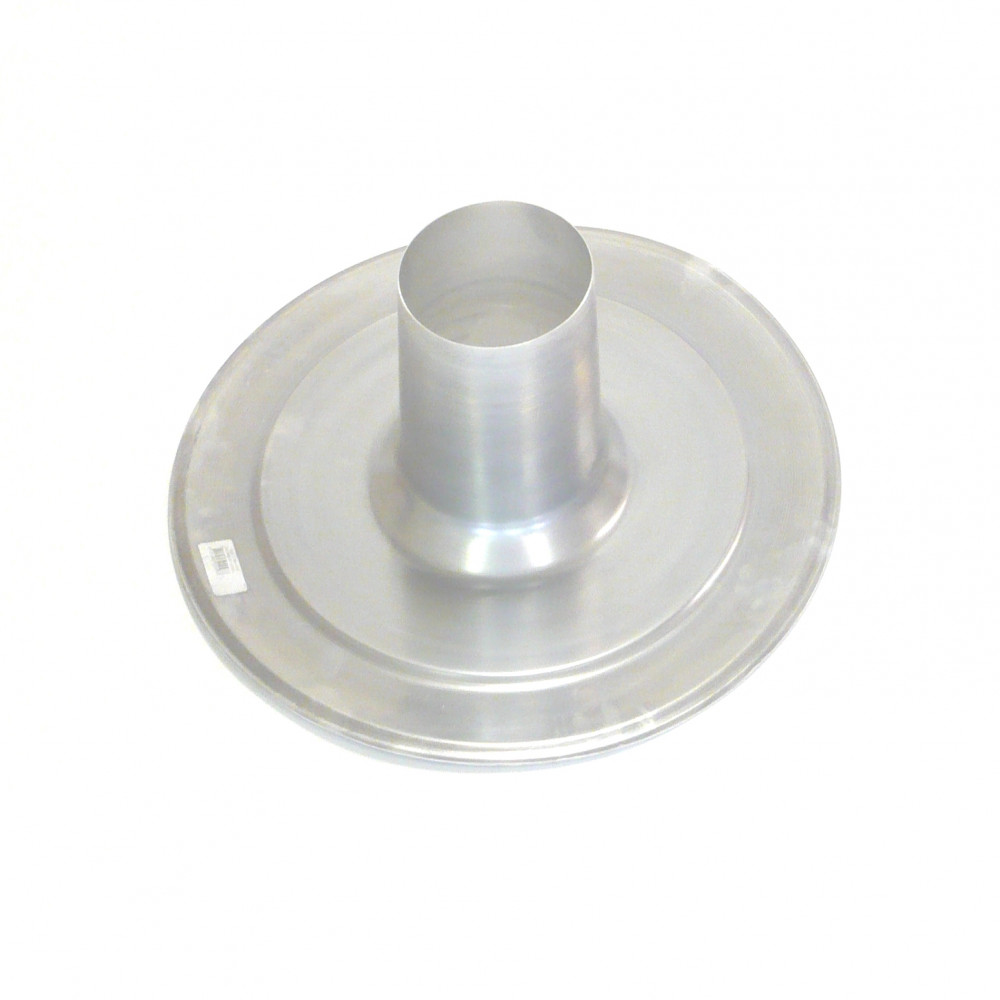

This vent/terminal is available with varying pipe diameters to allow termination through a flat roof to ducting. There are also varying flange types, five included, for different roof coverings such as Asphalt, Felt, EPDM, Bitumen and PVC. Additionally, the Ubbink OFT/1 has a stack cap to fix mechanically to ensure the system is more secure when installed in extreme weather. If needed, this part is removable for servicing purposes.

Features & Benefits: Ubbink OFT/1F Flat Roof Vent/Terminal - 110mm

  • Suitable for soil and vent systems and ideal for flat roof extraction
  • Usable for natural or mechanical ventilation installations
  • Ideal for felt roof covering
  • Large free vent area
  • Low Pascal resistance figure
  • Available 110mm pipe diameter
  • Termination through flat roof to ducting
  • Five varying flange types available
  • Stack cap for secure installation in extreme weather
  • Removable for servicing purposes

Dimensions

Length 820mm Depth 817mm Width 330mm

Details

Colour Black Material Polyethylene Product Type Ventilation Fitting Type Gasket
Push Fit
Pipe Diameter 110mm

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Hi. Is this suitable for a 100mm ducting from a shower extractor?

Answer:

100%

Question:

I would be installing in a felt/bitumen roof how is it fixed?

Answer:

You would need to ensure that the felt/bitumen is covering the flange of the vent and that it is fully watertight.

Question:

How do I connect the roof vent 110mm pipe to 125mm ducting pipe?

Answer:

I will email you the correct one

Question:

Does this come with the flange for fixing on a felt roof?

Answer:

The Ubbink OFT/1 range is available in five different flange types for different roof coverings, Asphalt, Felt, EPDM, Bitumen and PVC - you just need to state what one you need in the notes

Question:

Is this suitable for GRP roof? If so, please forward installation manual/ instructions. T

Answer:

Yes this can be used on a GRP Roof

Question:

I have a flat roof (GRP) with 200mm joists. Can I cut the 600mm pipe down to fit?

Answer:

Yes you can cut the lower pipe to suit your needs

Question:

Would this be suitable for a kitchen extractor to vent through a felt garage roof?

Answer:

100% yes

Question:

Would this vent be suitable for bathroom extraction?

Answer:

Yes 100%

Question:

Have you got this for a bitumen felt application?

Answer:

This item is provided with a flangle suitable for insyallation with Bitumen Felt.

Question:

How do you waterproof in grp roof. What do you deal with to make waterproof.

Answer:

Part of installation will be dressing GRP back over the flange to make this waterproof. We would recommend getting a Roofer to do this job as GRP is a more specialist product.
