Type J2 DPC Cavity Support and Closer 100mm - 2.4m Length

Code:

TYPEJ2

Brand:

This Type J2 cavity support and closer from Cavity Trays provides excellent DPC (damp-proof course) support while closing the cavity beneath parapet copings. It also ensures a method for closing the cavity in open eaves and other eaves details. Parapet structures require a DPC ... Read More

View full product details

View questions about this product

£33.49 Incl. VAT

Earn points

Est. Delivery: 2-3 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Mark Passmore

Description

Parapet structures require a DPC directly under the coping, and the British Standards to BS5628: Part 3 qualifies the process in which it must be supported. This Type J closer satisfies these Standards as well as the NHBC performance standards, chapter 6.1, S4 (c) to (d).

Features & Benefits: Type J2 DPC Cavity Support and Closer 100mm - 2.4m Length

uPVC material, Type 4
Suitable for use in cavities from 90mm up to and including 100mm
Standard length of 2400mm
Provides DPC support
Closes the cavity
Prevents water pooling under coping
Satisfies BS 5628 requirement
150mm x 30mm x 2mm/2.5mm purposes

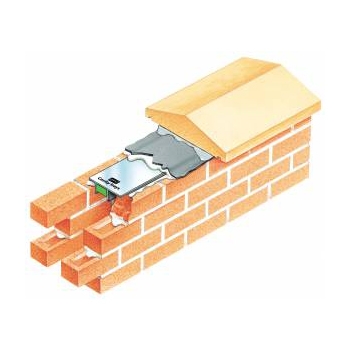

Traditional cavity parapets are typically terminated with copings, under which a DPC is positioned and bedded. The DPC's width must be enough to marginally overhang the width of the parapet masonry. This Type J cavity support has been designed to support the DPC where it spans the cavity and has a standard length of 2400mm, 150mm width and 30mm height. It is suitable for cavities up to 100mm.

Please note:

This is an uninsulated Cavity Support and Closer. A Cavity Support and Closer is available with an insulated infill of K-value 0.037W/m°C.

Specification

Details

Material uPVC

Downloads

Technical Information

Questions & Answers

Question:

Do you supply to suit a 125mm wide cavity ?

Answer:

this is the only 125mm cavity closer we sell

https://www.roofingsuperstore.co.uk/product/thermoloc-fire-rated-cavity-closer-125mm-x-2-4m-pack-of-10.html

Question:

Does this stop any water getting into the cavity

Answer:

Yes it closes the cavity off once bedded in

Question:

Can you use this product under aluminium capping for closing off parapet ?

Answer:

The function of the Type J is to support the DPC that is fitted beneath a coping and to prevent it from sagging into the cavity. If you are fitting an aluminium capping onto the parapet wall, it is likely no DPC will be required (so nothing to be supported). If you simply wishes to close/cap the cavity at the top of the wall before fitting the aluminium capping then the Type J could be used to achieve this, but may not be fully necessary.
