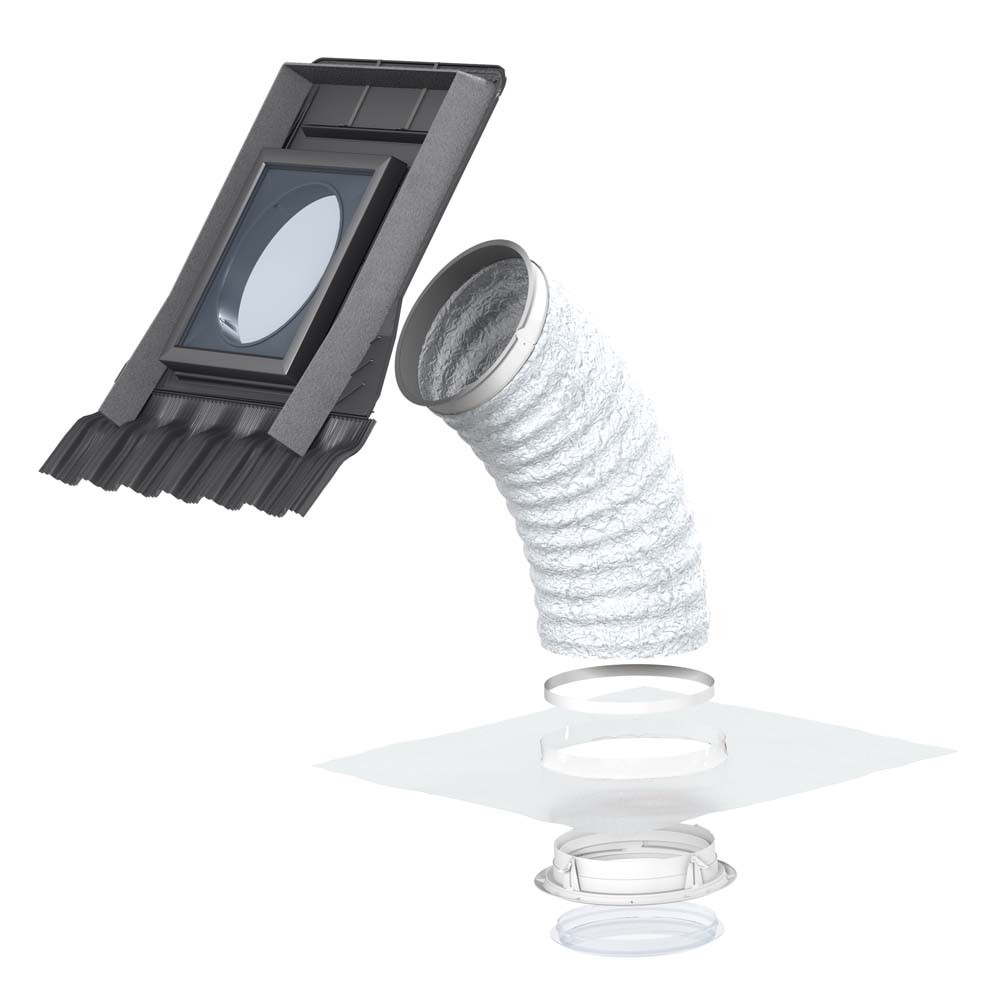

For maximum light, these VELUX TWF OK14 2010 flexible sun tunnels utilise EdgeGlow technology. This is an innovatively designed ring of clear glass that enhances the spread of light to brighten the room. They are flexible and, in turn, fantastic applications where an obstacle ... Read More
SUPER Rewards Earn points and build more across our SUPERSTORES!
Find out moreFor maximum light, these VELUX TWF OK14 2010 flexible sun tunnels utilise EdgeGlow technology. This is an innovatively designed ring of clear glass that enhances the spread of light to brighten the room. They are flexible and, in turn, fantastic applications where an obstacle prevents rigid installation in a loft space. Between 0.4m and 1.5m (2m supplied) is the recommended tunnel length.
Sun tunnels can supply daylight to bathrooms, corridors and cupboards that have no windows. They are provided with a white ceiling ring and are simple to install with integral tile flashings, require minimal effort when cleaning and create a flat glass window appearance. With a double-layer acrylic ceiling diffuser and an optional low-energy light kit, they can be installed for night-time lighting.
Please note:
There are no product downloads to show.
Question:
How far down from the ridge tile can this be fitted.ie tuck the flashing under the ridge tile.
Answer:
Technically It should be at least one tile away from the ridge
Question:
How flexible is the tunnel and how long
Answer:
The pipe is 2m long. It is very flexible, but the more you bend it the more light you will lose
Question:
What is the minimum distance between the outside tiles and ceiling for this product?
Answer:
flexible sun tunnel is between 0.4m and 1.5m (2m supplied)
Question:
hi can you install a sun tube in a vaulted roof ? ie distance from outside to underneath finished ceiling approx 150mm
Answer:
Yes you can but you would need to cut the tube and do so on-site fixing
Question:
Can this tunnel be extended and if so what would the product code be please
Answer:
You can extend the ridged only as there would be too much light loss extending a flexible tube
Question:
Hello. Will this flashing kit work with Marley Modern concrete tiles?
Answer:
Yes this would work with Marley Modern tiles.
Question:
How long is the flexible tunnel?
Answer:
2m is supplied with the unit. The recommended tunnel length for a flexible sun tunnel is between 0.4m and 1.5m.
Question:
Do you need anything additional to this product to be able to successfully install this in an existing roof?
Answer:
No, this is a complete kit including the Sun Tunnel and Flashing kit to be able to install into a tiled roof.
Question:
Would this product work with a concrete profiled tile? It has more square profiles rather than round as the picture...
Answer:
This will work with most concrete profiled tiles to include castellated and double roman tiles. For more information regarding compatibility with your tile; please contact our sales team on 01752 692 760
