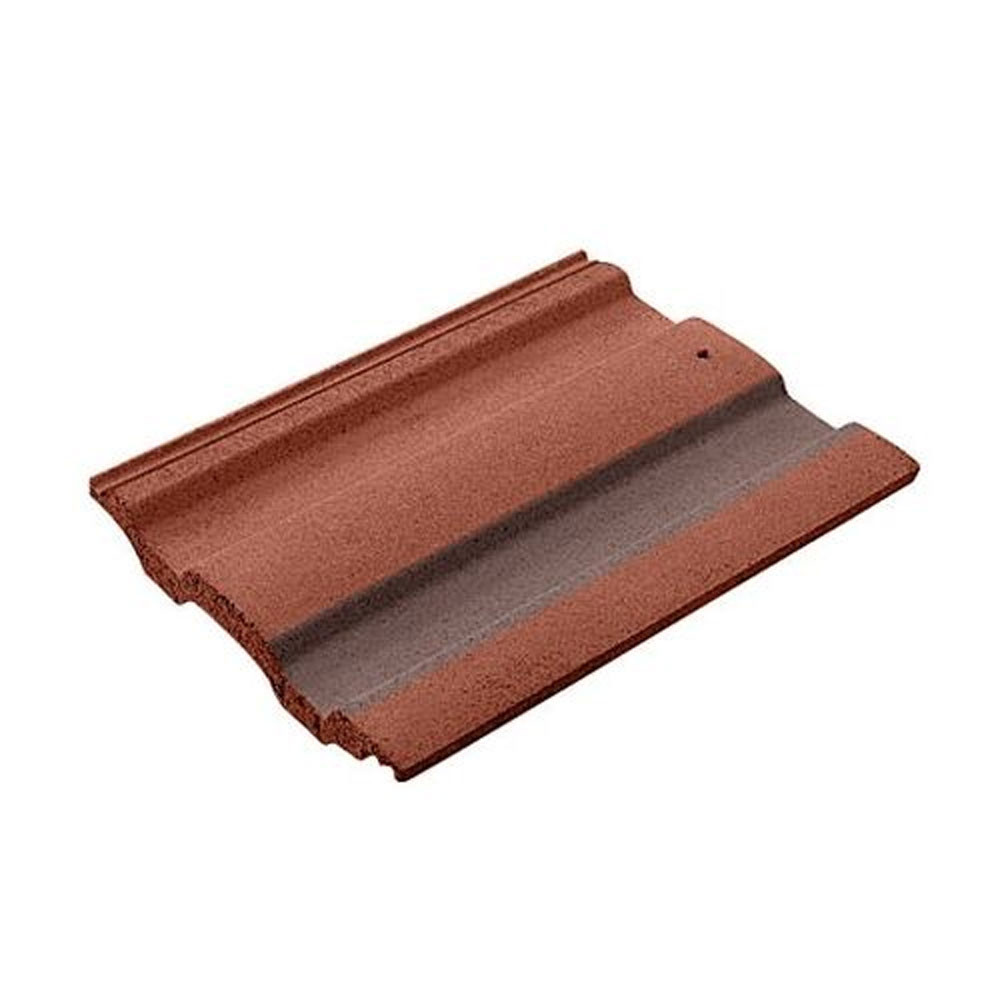

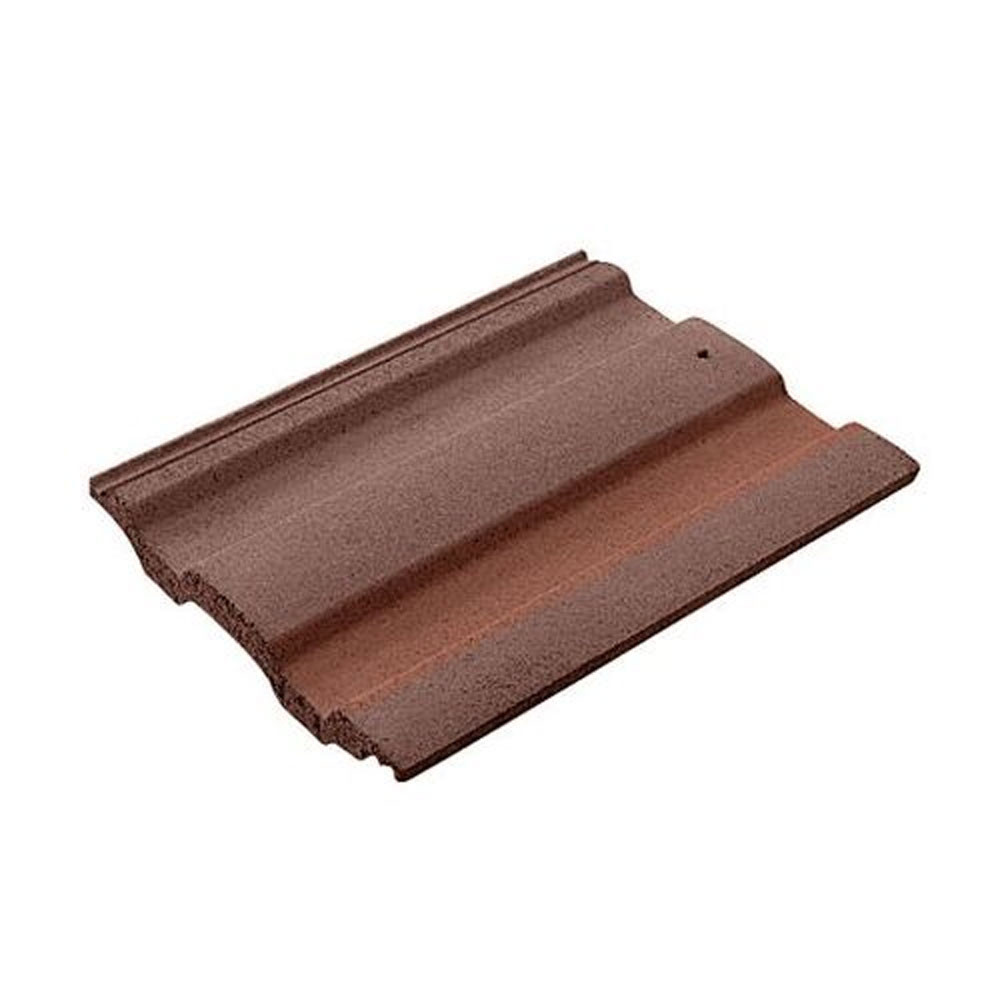

The Redland Renown Concrete Roof Tile is a sleek and low-profile option, carefully crafted to blend in with its environment and add a modern touch to roofs featuring a square-edged design. Like other interlocking concrete tiles, this tile is laid effortlessly and quickly, ensuring high resistance against strong winds and heavy rainfall.
With different finishes and colour options available, you can match this 26mm thick tile to the rest of your roof design. It has a minimum pitch of 17.5° at 100mm headlap and 22.5° at 75mm headlap for smooth through coloured finishes and a minimum of 22.5° at 100mm headlap and 30° at 75mm headlap for granular finishes. It also has a maximum pitch of 90°, subject to fixing specifications.
Suitable for fixing with 50mm x 3mm nails, this tile achieves coverages of 10.5 tiles per m² at 318mm gauge and 9.7 tiles per m² at 343mm gauge. It can be installed at a maximum headlap of 125mm and minimum gauge of 293mm, while the maximum gauge varies at 318mm below 22.5° and 343mm at 22.5° and over. The recommended batten size for rafter centres up to 450mm is 38mm x 25mm and 50mm x 25mm for rafter centres up to 600mm. The battens required are 3.15m per m² at 318mm gauge and 2.92m per m² at 343mm gauge.
