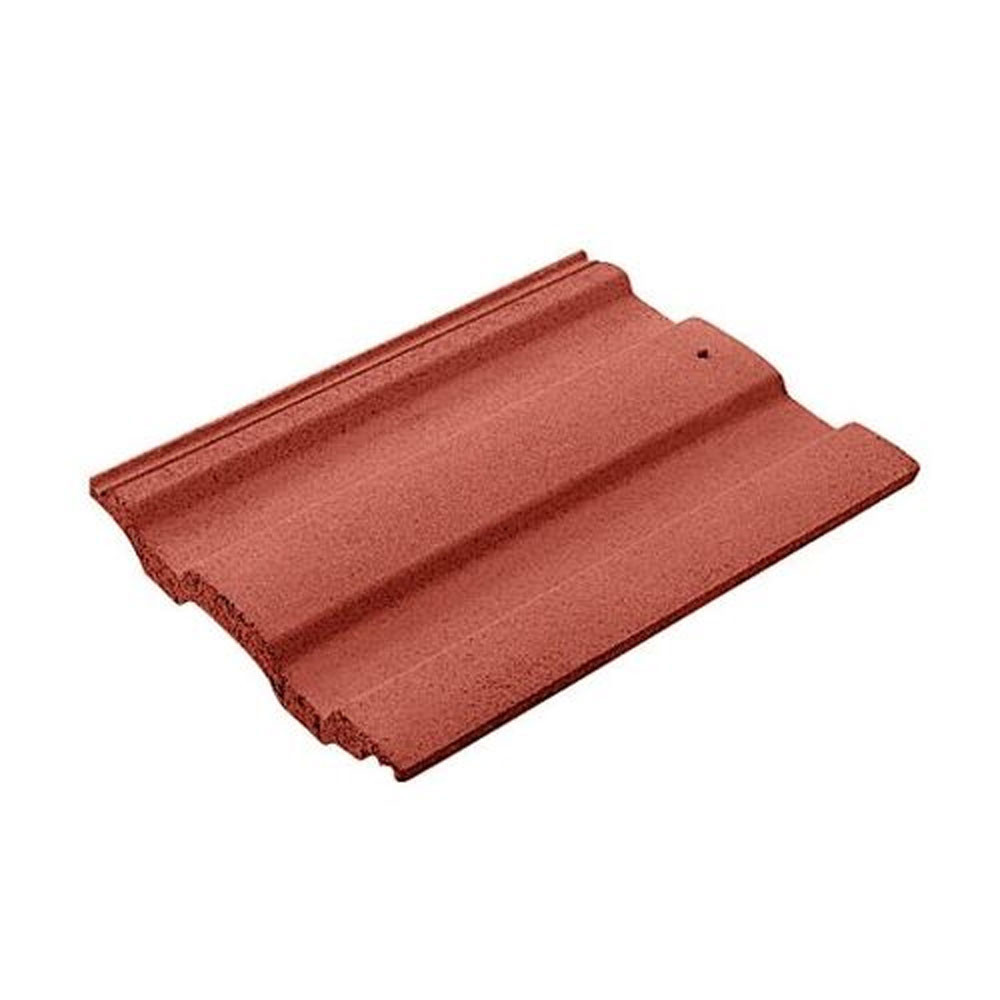

The Redland Renown Concrete Roof Tile is a sleek and low-profile option, carefully crafted to blend in with its environment and add a modern touch to roofs featuring a square-edged design. Like other interlocking concrete tiles, this tile is laid effortlessly and quickly, ensuring high resistance against strong winds and heavy rainfall.

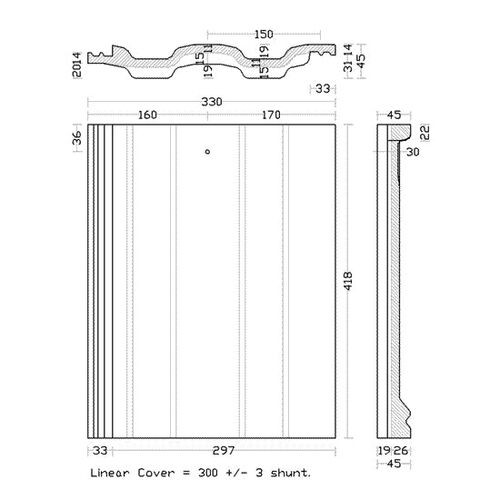

With a smooth, through-coloured finish, you can match this 26mm thick tile to the rest of your roof design. It has a minimum pitch of 17.5° at 100mm headlap and 22.5° at 75mm headlap. It also has a maximum pitch of 90°, subject to fixing specifications.
Suitable for fixing with 50mm x 3mm nails, this tile achieves coverages of 10.5 tiles per m² at 318mm gauge and 9.7 tiles per m² at 343mm gauge. It can be installed at a maximum headlap of 125mm and minimum gauge of 293mm, while the maximum gauge varies at 318mm below 22.5° and 343mm at 22.5° and over. The recommended batten size for rafter centres up to 450mm is 38mm x 25mm and 50mm x 25mm for rafter centres up to 600mm. The battens required are 3.15m per m² at 318mm gauge and 2.92m per m² at 343mm gauge.
