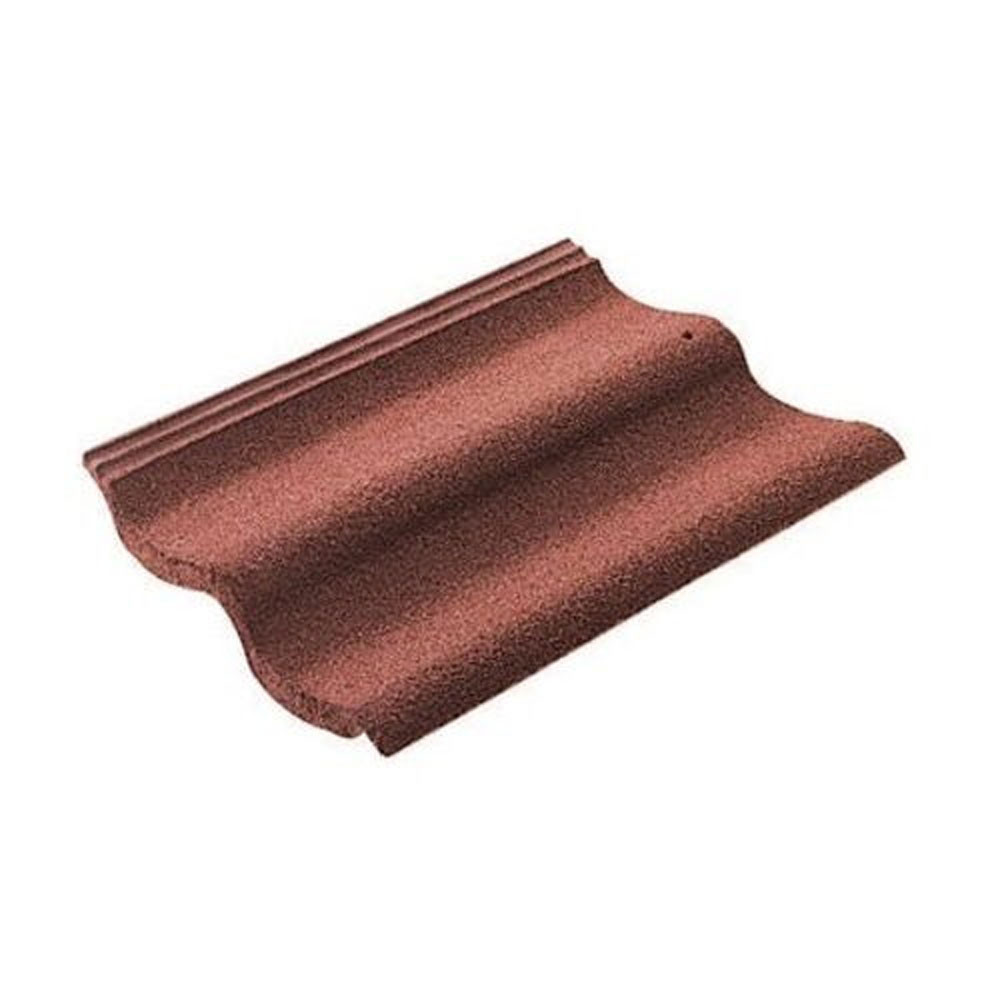

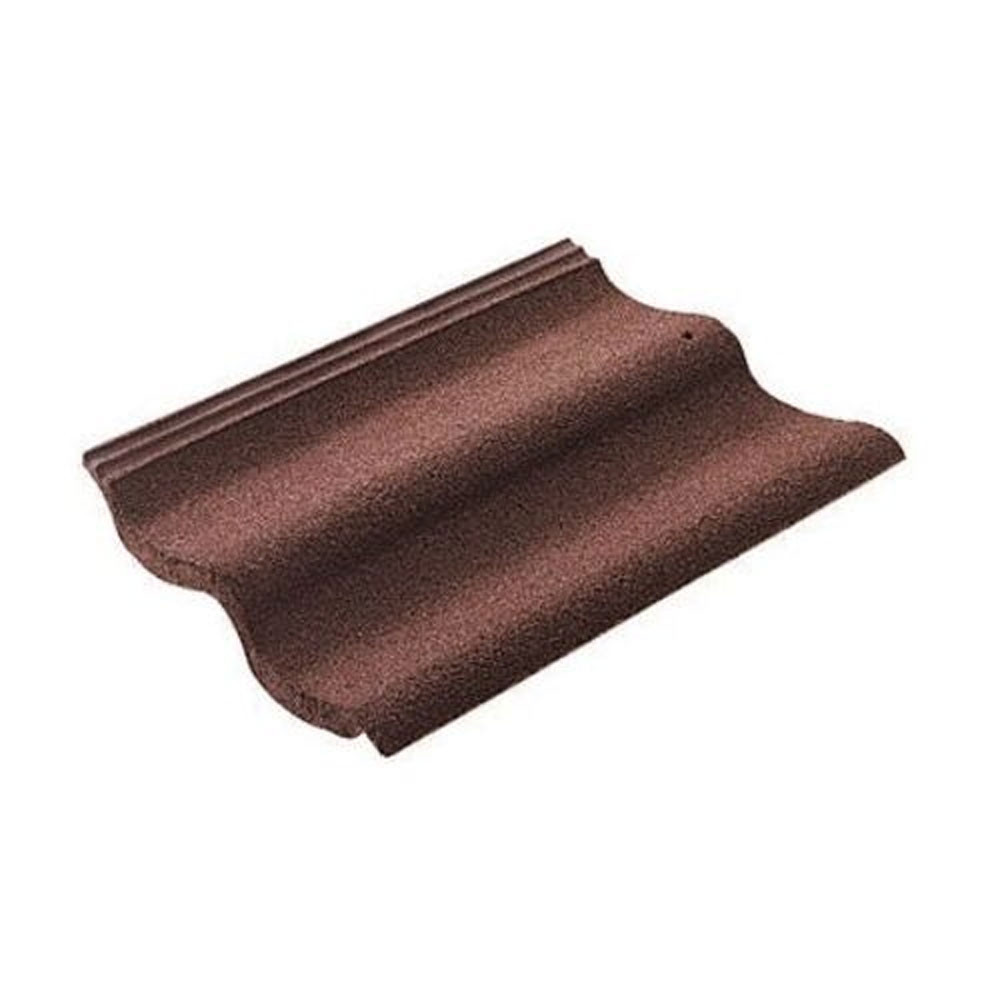

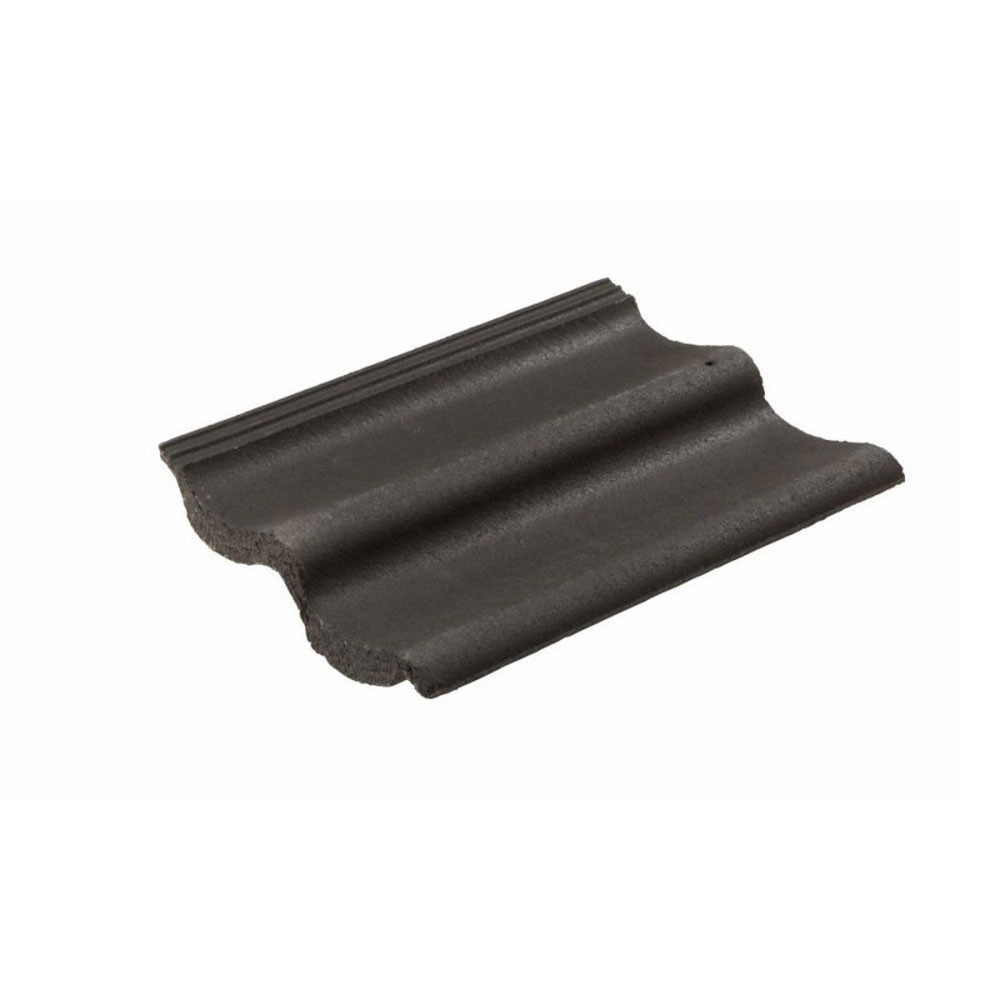

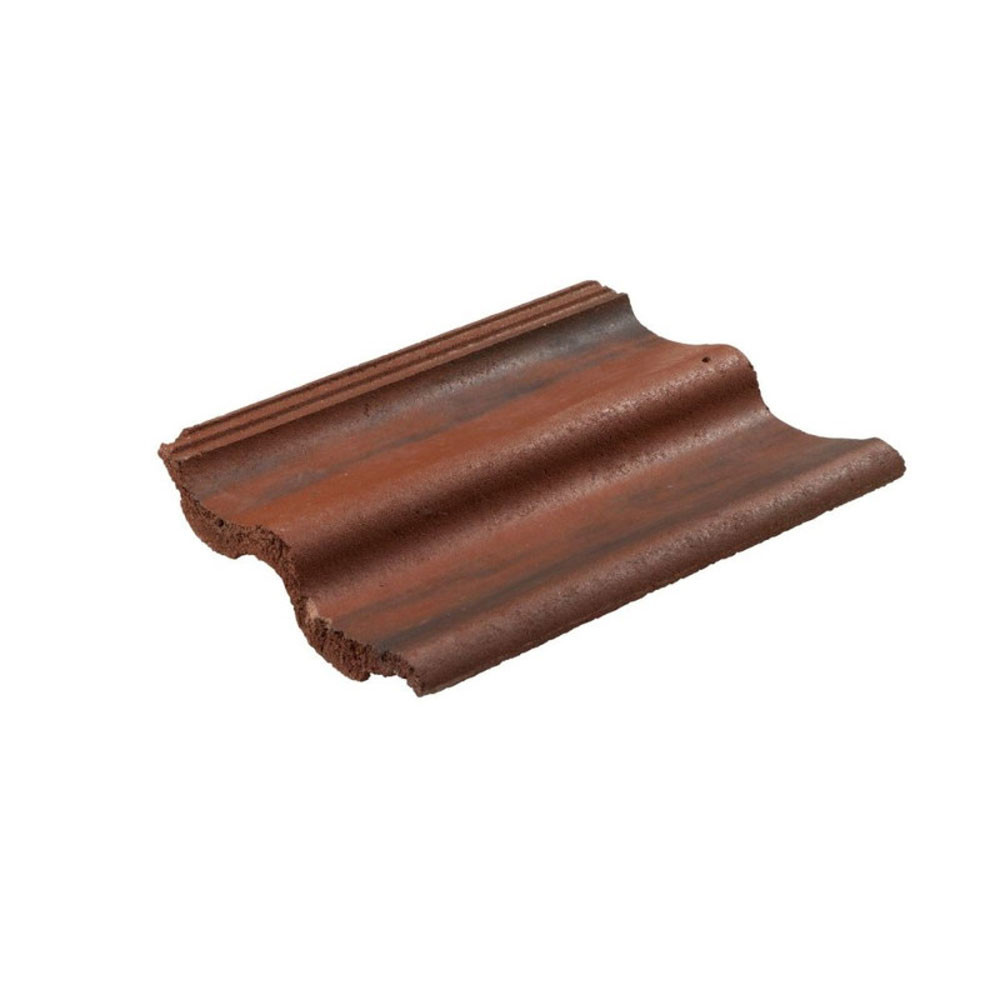

Redland Grovebury Concrete Roof Tile

Code:

REDLAND-5741

Brand:

Redland

Designed with a unique double pantile shape, this Grovebury concrete interlocking tile ensures a swift and hassle-free installation process. With the timeless elegance of classic pantiles, it seamlessly blends into any environment, effortlessly enhancing its surroundings. Boast... Read More

View full product details

View questions about this product

Colour

from

£2.00 Incl. VAT

Earn points

Delivery from: 10-15 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Robert Mazurek

Description

Boasting a low pitch and a wide array of captivating colours, this Grovebury tile is an ideal choice for both new construction and renovation projects. With two distinct surface textures, it caters to diverse aesthetic preferences, ensuring a popular and stylish selection.

Features & Benefits: Redland Grovebury Concrete Roof Tile

418mm x 332mm tile size
29mm tile thickness
4.7 tonnes weight per 1000 tiles
Available in a wide variety of colours and surface finishes
Profiled tile with a double pantile shape
Quick and easy to lay
Traditional design of classic pantiles
Seamlessly blends into any environment
Ideal for new build and renovation projects
Suitable for roof pitches up to 90°
70mm x 3.75mm nail size

To ensure optimal performance, Redland offers specific guidelines for pitch requirements. For a smooth, through-coloured surface, a minimum pitch of 15° with a 100mm headlap and 17.5° minimum with a 75mm headlap is recommended. A 22.5° minimum pitch with a 100mm headlap and 30° minimum with a 75mm headlap is suitable for a granular surface. The maximum pitch is 90°, subject to the provided fixing specification. The maximum headlap specification measures 125mm. The Grovebury tiles require a minimum gauge of 293mm and a maximum gauge of 318mm for pitches below 17.5°, while pitches at or above 17.5° can accommodate a gauge of up to 343mm.

With a gauge of 318mm, the coverage is 10.5 tiles per square metre, and with a gauge of 343mm, it amounts to 9.7 tiles per square metre. For the installation of Grovebury tiles, appropriate battens are essential. Rafter centres up to 450mm require battens sized at 38mm x 25mm, while rafter centres up to 600mm necessitate battens sized at 50mm x 25mm. Depending on the gauge chosen, the required amount of battens per square metre varies: 3.15 metres for a 318mm gauge and 2.92 metres for a 343mm gauge.

Standards & Certification

BBA certified
Grovebury Tiles conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding

Specification

Dimensions

Size 418mm x 332mm

Details

Type Tile Finish Granular
Smooth Colour Breckland Black
Breckland Brown
Charcoal Grey
Farmhouse Red
Rustic Red
Slate Grey
Terracotta
Tudor Brown Material Concrete

Profile Double Pantile Minimum Pitch 15 Degrees

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Hi, mat I know this roof tile comes in transparent acrylic? Thank you

Answer:

You can no long get these in acrylic

Question:

coverage per m2

Answer:

Coverage : 10.5 tiles/m2 at 318mm gauge.

Question:

Hi, I am calling to ask if you have these Redland Grovebury Tudor Brown pantiles in stock and also the matching half round ridge tiles. Also would the delivery time be the 30/35 days as stated on your website. Many thanks , John.

Answer:

I have sent you a personal email
