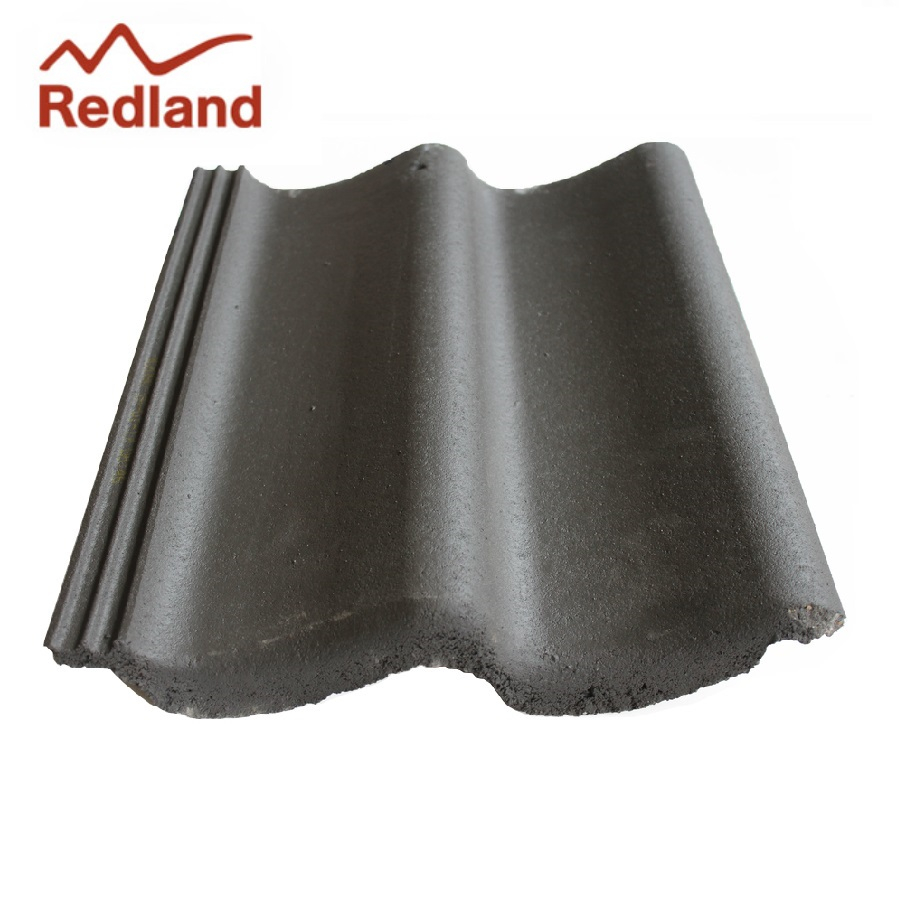

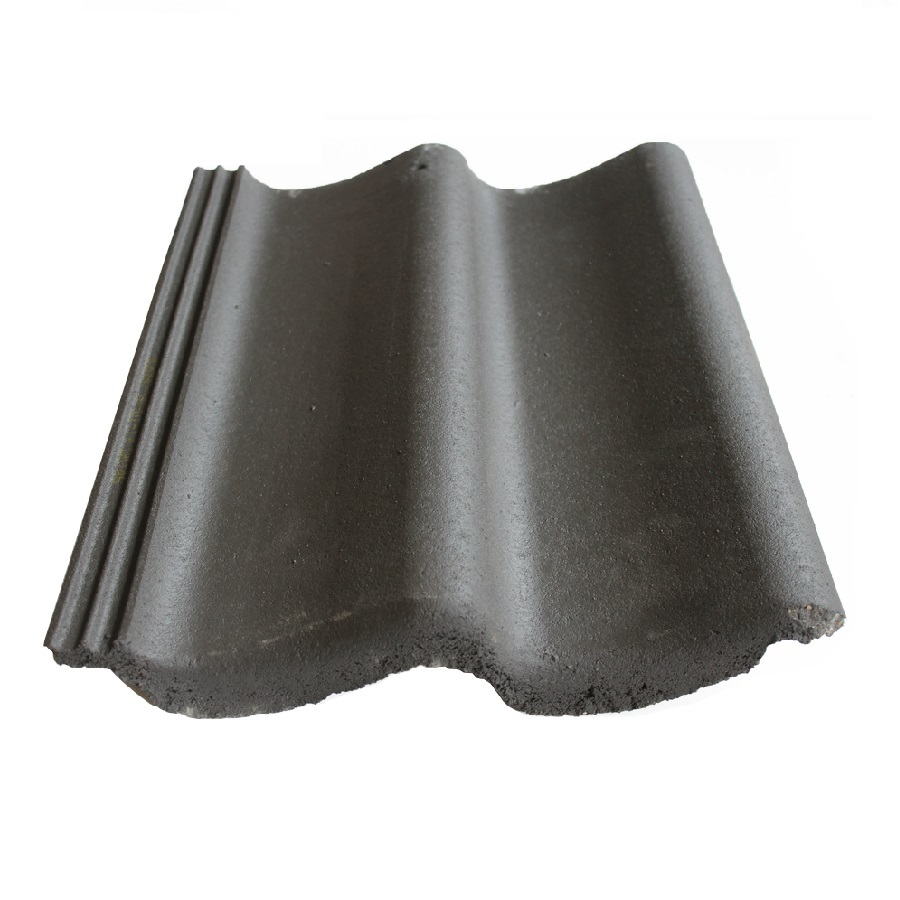

Redland Double Pantile Concrete Roof Tile Dutch Grey - Pallet of 210

Code:
5801/09
Brand:

This item is out of stock and not available to purchase.

A classic profiled interlocking tile available in two popular colours, Double Pantile is compatible with a wide range of Redland fittings and components. Available Colours: Dutch Red and Dutch GreyTechnicalSize: 420mm x 332mmMinimum Pitch: 15°Maximum Pitch: 90°Maximum Headl... Read More

Create a wishlist

"Velux window purchase"

paul roberts

Description

A classic profiled interlocking tile available in two popular colours, Double Pantile is compatible with a wide range of Redland fittings and components.

Available Colours: Dutch Red and Dutch Grey

Technical

Size: 420mm x 332mm
Minimum Pitch:
15°
Maximum Pitch: 90°
Maximum Headlap: 125mm
Hanging Length (approx): 395mm
Covering Capacity at Maximum Gauge: 9.7 tiles/m2
Weight per pallet, including pallet (approx): 0.94 tonnes
Battens Required (at Maximum Gauge): 2.92m2
Batten Size (rafter centres up to 450mm): 38mm x 25mm
Batten Size (rafter centres up to 600mm): 50mm x 25mm
Nail Size for Tiles: 70 x 3.75mm (aluminium alloy)
Tiles per Pallet: 210

Please note, these tiles are only available in full pallet quantities.

Details

Type Tile Colour Grey Material Concrete Profile Landmark Double Pantile
