Redland 50 Double Roman Roof Tile - Slate Grey

Code:
2201/30 DUP
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

A classic interlocking concrete tile with a distinctive Roman profile, boasting a gentle roll and subtle pans. It is available in a wide range of colours, including the new Rustic Red, to blend harmoniously with any environment. Once installed, these tiles cre... Read More

Create a wishlist

"Excellent service quick turnaround…"

Paul Cockerill

Description

A classic interlocking concrete tile with a distinctive Roman profile, boasting a gentle roll and subtle pans. It is available in a wide range of colours, including the new Rustic Red, to blend harmoniously with any environment.

Once installed, these tiles create the look of a classic, clay double roman roof with the added advantage of being compatible with a wide range of fittings and accessories.

Properties

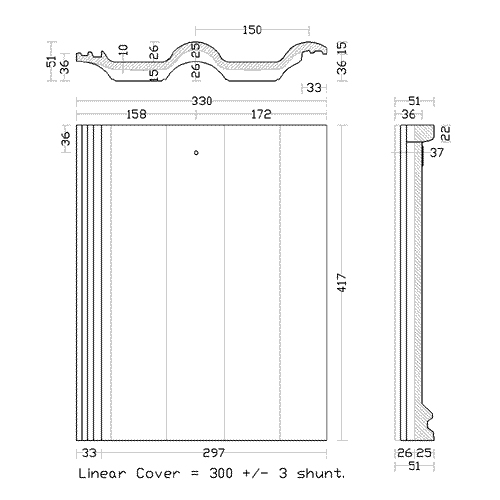

Size : 418mm x 330mm.
Minimum pitch : 17.5° through coloured at 100mm headlap.
22.5° through coloured at 75mm headlap.
22.5° granular at 100mm headlap.
30° granular at 75mm headlap.
Maximum pitch : 90°.
Coverage : 10.5 tiles/m2 at 318mm guage.
9.7 tiles/m2 at 343mm guage.
Weight : 4.2 tonnes/1000.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 3.15m/m2 at 318mm guage.
2.92m/m2 at 343mm guage.
Nail size : 60mm x 3.35mm.

There are no product specifications to show.
