Must be ordered in pallet quantities of 336 tiles. A visually appealing, small interlocking cambered tile that has defined roofscapes of London and the South East for more than 60 years. The Redland 49 has defined the roofscapes of London for over half a century, with its u... Read More
Must be ordered in pallet quantities of 336 tiles.

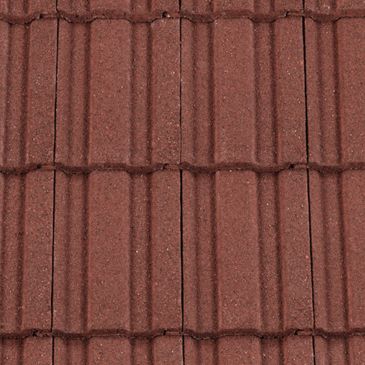

A visually appealing, small interlocking cambered tile that has defined roofscapes of London and the South East for more than 60 years.
The Redland 49 has defined the roofscapes of London for over half a century, with its unique camber adding both strength and aesthetic appeal.
A smaller format offers a light unit weight and a tile that is easy to handle and install. Redland 49 is thus an extremely economical choice of roofing material.
Properties

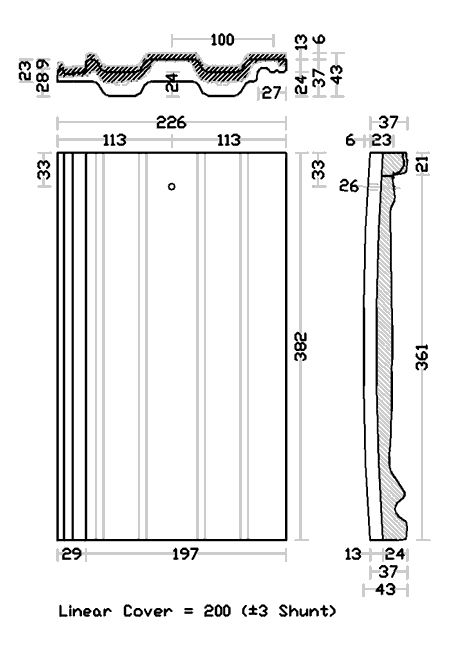

Size : 382mm x 226mm.
Minimum pitch :
Through coloured :
17.5° at 100mm headlap.
25° at 75mm headlap.
Granular :
22.5° at 100mm headlap.
30° at 75mm headlap.
Maximum pitch : 90° subject to fixing specification.
Coverage : 17.8 tiles/m2 - 282mm guage.
16.3 tiles/m2 - 307mm guage
Weight : 1.42 tonnes/1000.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 4.76m/m2 - 210mm guage.
3.56m/m2 - 282mm guage.
3.26m/m2 - 307mm guage.
Nail size : 50mm x 3.00mm.
