Marley RidgeFast System - 6 Metre Pack

Code:

MA53300

Brand:

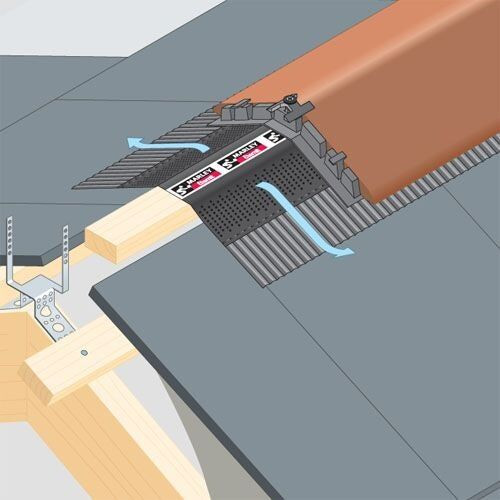

The Marley RidgeFast System is a low-cost, ventilated dry ridge system. Providing great value for money, it comes with everything needed for a perfect, ventilated ridge in one handy 6m box. The 6m roll is easily moulded to the shape of any tile or slate with a grey side flashi... Read More

View full product details

View questions about this product

£135.73 Incl. VAT

Earn points

Est. Delivery: 1-2 Working Days

Shipping costs displayed in basket.

For delivery Tuesday, Dec 24th - order in:

days hrs mins secs

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Graham Hutchison

Description

The system's ventilation features provide a 5,000mm² per linear metre minimum ventilated area, with testing and compliance with BS 5534 and BS 5250 standards. Specially designed blanking strips allow you to use RidgeFast with ridge and gas vent terminals.

Features & Benefits: Marley RidgeFast System - 6 Metre Pack

Easy to fix and maintenance free
Offers high performance
All in one box for convenience
Quality-assured
Suitable for pitches between 12.5° and 60°
Use one or two thicknesses of batten to suit the tile thickness
Mechanically fixes top course tiles and slates
6m roll length

The RidgeFast system is ideal for all standard ridges, tiles and slates where roof pitches are between 12.5° and 60°. The maximum rafter pitch is 50° for Modern, Double Roman, Edgemere, Ludlow Plus, Ludlow Major tiles and 60° for Plain, Mendip, Wessex and Anglia Plus tiles. In terms of fibre cement slates, there's a maximum pitch of 35° when using Modern Ridge, 40° when using Segmental Ridge and 45° when using 90° Plain Angle Ridge.

Kit Contents

1 x 6m Ridge Roll
10 x Ridge batten brackets
13 x Ridge unions
13 x Ridge union clamps
13 x S/S Screws (75mm x 4.8mm)
40 x S/S ARS Nails (25mm x 2.65mm)

Standards & Certification

Tested and complies with BS 5534 and BS 5250

Please note:

This kit is unsuitable for 75° plain angle ridge, capped angle ridge, roll top ridge or hogs back ridge.

Specification

Dimensions

Length 1mm Depth 1mm Width 1mm

Details

Type Dry Ridge Kit Material Plastic
Stainless Steel Profile Anglia Plus
Double Roman
Edgemere
Ludlow Major
Ludlow Plus
Mendip
Modern
Plain Tile
Wessex Minimum Pitch 12.5 Degrees

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Is this product available in a slate colour?

Answer:

The roll out part of the kit is provided in a grey as standard.

Question:

whats in the box?

Answer:

If you click the small image next to the main image of the product it shows a full list of components.

Question:

Hi looking for replacement Marley Ridge fast 6m length ridge roll only. Also looking for the Rigefast roll applicator, code 33002.

Answer:

You can find the ridge roll listed on its own on the link below.
https://www.roofingsuperstore.co.uk/product/marley-ventilated-ridge-roll-for-fibre-cement-slates-6m-roll.html

I am afraid we no longer sell the applicator tool.
