A double pantile design with elegant flowing lines, instant visual appeal and exceptional strength. The Mendip interlocking tile is available in 7 stylish colours, and is a popular choice with discerning specifiers and builders alike. All Marley concrete interlocking tile... Read More

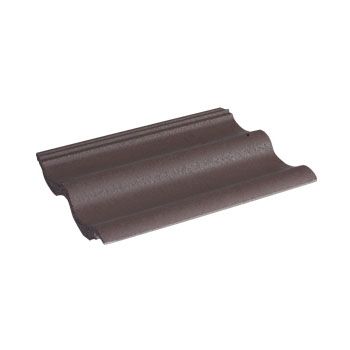

A double pantile design with elegant flowing lines, instant visual appeal and exceptional strength.
The Mendip interlocking tile is available in 7 stylish colours, and is a popular choice with discerning specifiers and builders alike.
All Marley concrete interlocking tiles can achieve an 'A+' rating (the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
• Double pantile.
• Elegant flowing lines.
• Exceptionally durable.
Size of Tile
420mm x 330mm.
Minimum Pitch
15° Smooth (100mm headlap).
17.5° Smooth (75mm headlap).
30° Granular (75mm headlap).
25° Granular (100mm headlap).
Maximum Pitch
90°.
Minimum Headlap
75mm.
Maximum Gauge
345mm.
Cover Width
298mm (nominal).
Covering Capacity
9.7 tiles /m² at 75mm headlap.
10.5 tiles /m² at 100mm headlap.
Weight of Tiling
46kg/m² (0.45 Kn/m²) at 75mm headlap.
49kg/m² (0.48 Kn/m²) at 75mm headlap.
Battens Required
2.9 lin.m/m² at 75mm headlap.
3.1 lin.m/m² at 100mm headlap.
Batten Size Recommended
38x 25mm for rafters/supports not exceeding 450mm centres.
50 x 25mm for rafters/supports not exceeding 600mm centres.
Tile Nails
70mm x 3.35mm.
Hanging length
397mm (nominal).
Note
The effectiveness of the tile or slate to operate at the minimum recommended pitch and lap may be influenced by special circumstances.
Guidance on pitch and lap should be obtained from the Technical Advisory Service for the following:
Interlocking tiles and slates where the roof slope exceeds 6 metres in length and/or the site is rated to be in a severe exposure category.
192 Tiles Per Pallet.
32 Tiles Per Band.
