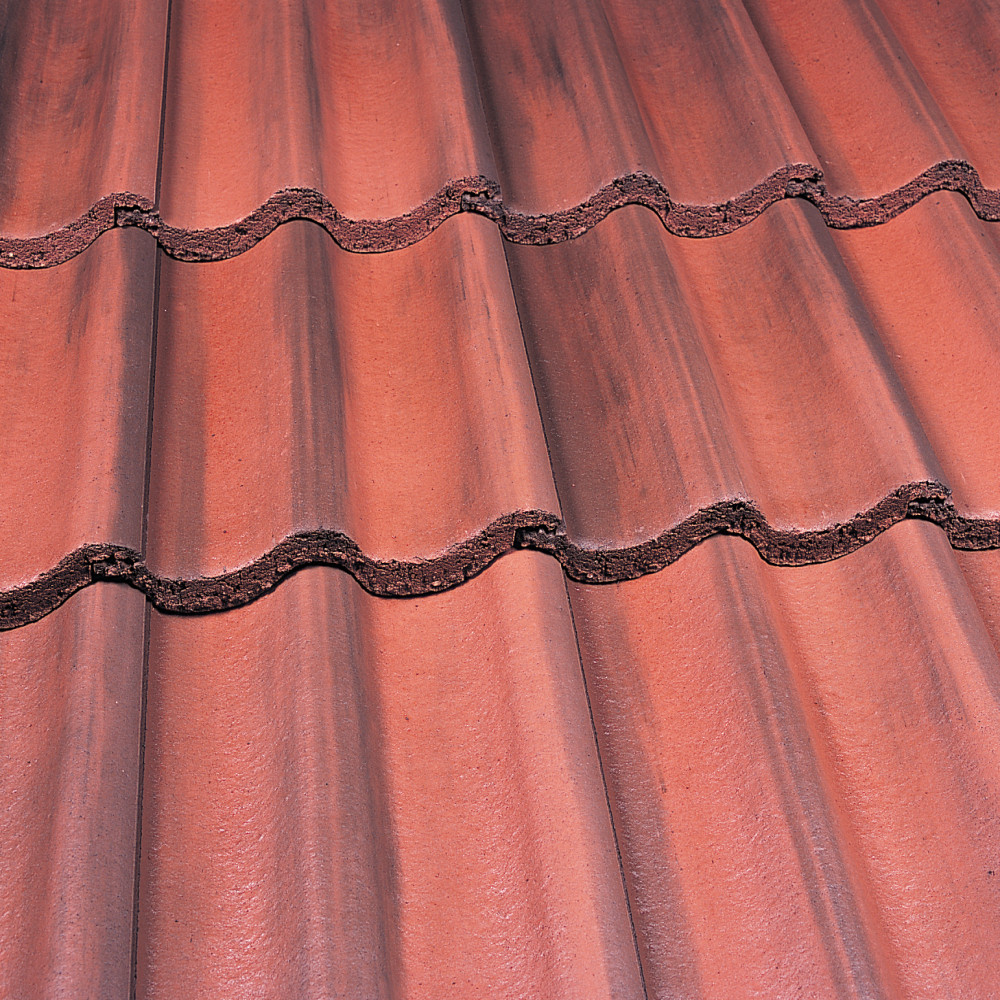

Marley Mendip Interlocking Concrete Roof Tile Old English Dark Red - Pallet of 192

Code:

MA12380

Brand:

These Mendip interlocking concrete roof tiles by Marley boast a timeless double pantile design. Pantiles, renowned for their captivating s-curve profile, provide an elegant yet rustic look for your roof. Excelling in strength and performing effortlessly at pitches as low as 15... Read More

View full product details

View questions about this product

Colour

£358.43 Incl. VAT

Earn points

Est. Delivery: 50-60 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

kenneth molyneux

Description

As a perfect alternative to standard plain tiles, these concrete interlocking tiles deliver a contemporary roofing solution. With their sleek and smooth appearance, they radiate aesthetic appeal while minimally impacting the environment. With a simple installation process, they are incredibly budget-friendly and robust, thanks to their concrete construction.

Features & Benefits: Marley Mendip Interlocking Concrete Roof Tile Old English Dark Red - Pallet of 192

Simple installation process
27mm nominal tile thickness
Suitable for a roof pitch from 15° up to 90°
Cost-effective and budget-friendly
Ideal for both builders and specifiers
Available in a range of colours
Classic double pantile design with traditional s-curve profile
Manufactured from high strength concrete material
Low environmental impact

With a 75mm headlap, you can achieve a net roof covering capacity of 9.7 tiles per square metre, while a 100mm headlap will allow 10.5 tiles per square metre. In terms of roof weight with the tiling, a 75mm headlap bears approximately 46kg/m² (0.45kN/m²), while a 100mm headlap increases it to around 49kg/m² (0.48kN/m²). To ensure a reliable installation, 70mm x 3.35mm tile nails are recommended. Adhere to a minimum 75mm headlap and a maximum roof gauge of 345mm for optimal structural integrity.

For every square metre of net roof, accommodate a 75mm headlap with 2.9 linear metres of battens. When opting for a 100mm headlap, equip yourself with 3.1 linear metres of battens per square metre. If your support or rafter intervals span no more than 450mm centres, choose 38mm x 35mm battens fixed to BS 5534. For larger intervals of up to 600mm centres, use 50mm x 25mm battens, also fixed to BS 5534.
