Marley Melodie Single Interlocking Clay Pantile Roof Tile Natural Red - Pallet of 240

Code:
MA71018
Brand:
Free UK Delivery

The Melodie single interlocking clay pantile from Marley is a versatile roof tile with a flexible gauge making it suitable for low pitch applications down to a 12.5-degree pitch. Pantiles are known for their traditional s-curve profile that creates a graceful roofsca... Read More

Create a wishlist

"Great product"

Dereck Evans

Description

The Melodie single interlocking clay pantile from Marley is a versatile roof tile with a flexible gauge making it suitable for low pitch applications down to a 12.5-degree pitch. Pantiles are known for their traditional s-curve profile that creates a graceful roofscape with rustic charm, and this classic tile will match surrounding areas perfectly and meet planning requirements.

Melodie tiles are available in Natural Red and Slate Grey. Both colours add distinctive character and beauty that improves over time.

Why Clay Profiled Tiles?

The clay profiled roof tiles are ideal for adding a groovy-type style to your property. It sways from the average plain tile design by incorporating ease-of-installation, as well as budget-friendly alternatives. They come in many different vibrant colours and offer a smooth finish, with potential to be used alongside specific concrete tiles types.

Product Specification

Colour:

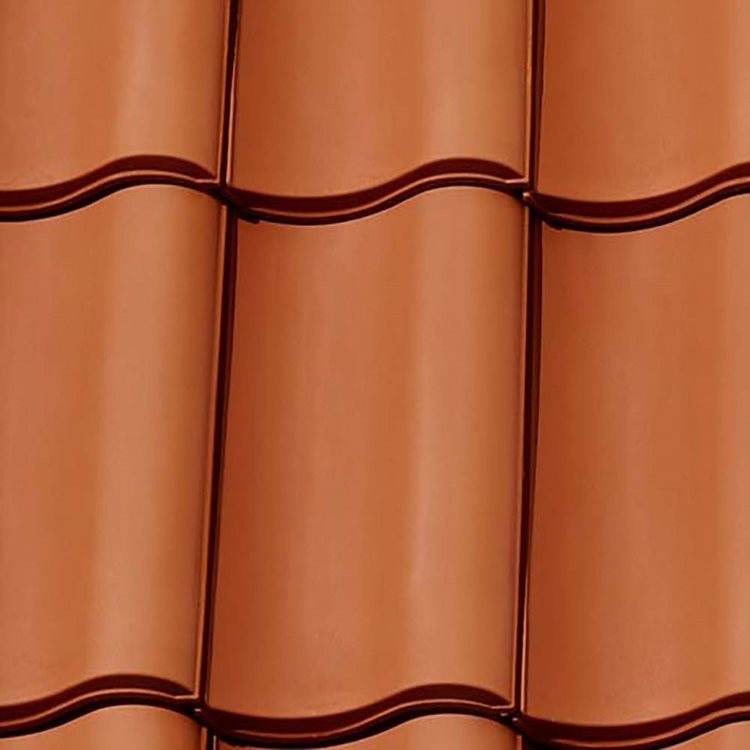

Natural Red

Minimum Pitch: 12°

Maximum Pitch: 70°

Size: 440mm x 255mm

Covering Capacity (Net, Roof)
13.8 tiles/m2 at 92mm headlap

Weight of tiling per m² (approx, roof):
44kg/m2 (0.43 kN/m2) at 92mm headlap

Minimum Headlap (roof): 92mm

Maximum gauge (roof): 348mm

Battens required (net, roof):
2.88 lin.m/m2 at 92mm headlap

Batten size recommended:
38mm x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
50mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)

Dimensions

Size 255mm x 440mm

Details

Type Tile Colour Natural Red Material Clay Profile Melodie
Minimum Pitch 12.5 Degrees Maximum Pitch 70 Degrees

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Do you sell them in individually?

Answer:

I am afraid these are only available by the full pallet.
