Maxima is a double roman tile with an easy to lay open guage which is suitable for roof pitches down to 17.5 degrees and provides an economical coverage of 10.1/m2 at the maximum gauge. Properties Size of tile: 403mm x 333mm. Minimum pitch: 17.5°. Maximum pitch: 70°.... Read More
Maxima is a double roman tile with an easy to lay open guage which is suitable for roof pitches down to 17.5 degrees and provides an economical coverage of 10.1/m2 at the maximum gauge.

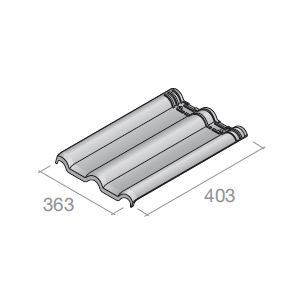

Size of tile: 403mm x 333mm.
Minimum pitch: 17.5°.
Maximum pitch: 70°.
Minimum headlap: 75mm.
Cover width: 300mm nominal.
Coverage: 10.1 tiles/m2 at maximum leadlap.
Weight of tiles: 45.7kg/m2 at 75mm headlap (approximately).
Battens required: 3.05m/m2 at 75mm headlap.
Batten size recommended: 38mm x 25mm for rafters/supports not exceeding 450mm centres.
50mm x 25mm for rafters/supports not exceeding 600mm centres.
Nails recommended: 45mm x 3.35mm aluminium clout head.
Lifespan: 60 years.
• A minimum pitch of 17.5 degrees.
• A flexible easy to lay open gauge.
• High coverage - 10.1 tiles per m2 at maximum gauge.
• A classic profile to meet planning requirements.
• Available in Natural Red.
• Compatible with concrete segmental and third round hip for an affordable roof covering.
• Provides the longevity and quality of using a strong, natural material with the benefits of modern production techniques.
Please note: you will require the mosborough red segmental ridge for use with this tile.
