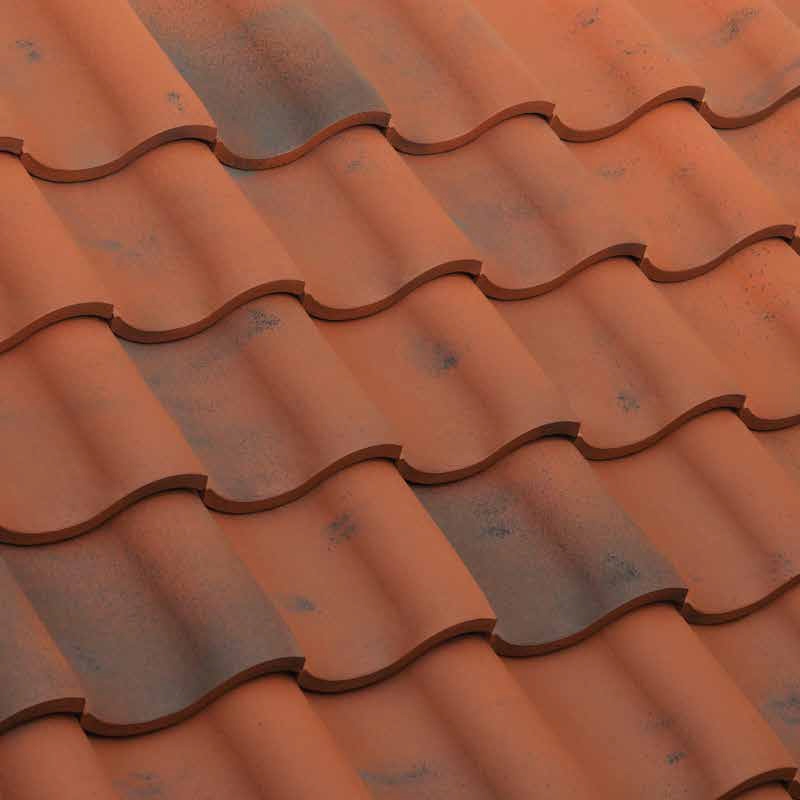

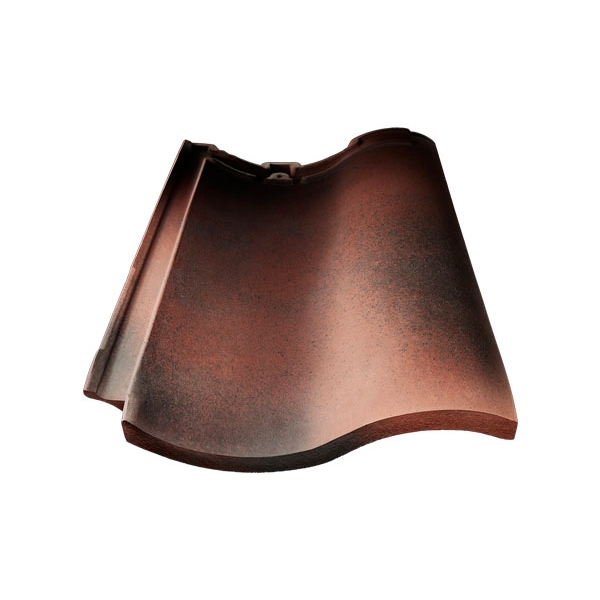

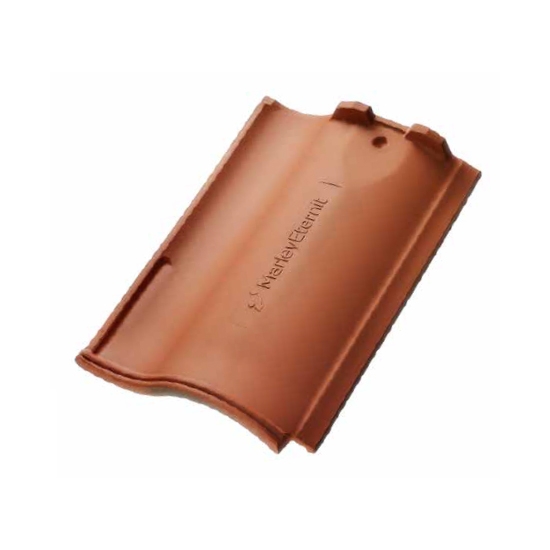

The classic curves of the Lincoln pantile offer all the natural, rustic beauty expected from a clay pantile whether it be for new housebuilding, refurbishment or commercial projects. Lincoln features an open-gauge design for ease of installation, very low pitch capabi... Read More
The classic curves of the Lincoln pantile offer all the natural,
rustic beauty expected from a clay pantile whether it be for new
housebuilding, refurbishment or commercial projects.
Lincoln features an open-gauge design for ease of installation, very low
pitch capability (down to 17.5°) and a range of fixings and
accessories.
Lincoln can be quickly and securely installed in line with the latest requirements of BS 5534 and NHBC technical standards.
PropertiesSize of tile : 370mm x 247mm.
Minimum pitch : 17.5° (120mm headlap).
22.5° (75mm headlap).
Maximum pitch : 70°.
Minimum headlap : 75mm.
Maximum gauge : 295mm.
Cover width : 222mm nominal.
Coverage : 15.3 tiles per m2 at 75mm headlap.
18 tiles per m2 at 120mm headlap.
Weight of tiling : 43kg per m2 at 75mm headlap.
50.4kg per m2 at 120mm headlap.
Battens required : 3.4 linear meters per m2 at 75mm headlap.
4 linear meters per m2 at 120mm headlap.
Batten size : 38mm x 25mm for rafters/supports not exceeding 450mm centres.
50mm x 25mm for rafters/supports not exceeding 600mm centres.
Tile nails : 38mm x 3.35mm.
Fixing clips : eaves, verge and tile clips.
Authority : BS EN 1304.
Colour : rustic red.
Finish : semi sanded finish.
