Ecologic™ is a a ground-breaking roof tile coating that will absorb asthma-causing pollutants from the air. Ecologic is based on a Ludlow Major profile and this particular tile also contains much higher levels of recycled 8-12 Weeks All of our concrete interlocking tiles ach... Read More
Ecologic™ is a a ground-breaking roof tile coating that will absorb asthma-causing pollutants from the air.
Ecologic is based on a Ludlow Major profile and this particular tile also contains much higher levels of recycled 8-12 Weeks
All of our concrete interlocking tiles achieve an 'A+' rating (the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.
Accreditation to the BES 6001 framework standard for 'Responsible Sourcing' means that projects using our concrete tiles can now achieve extra credits under BREEAM and The Code for Sustainable Homes.
Contains circa 50% recycled material.
EcoLogic coating removes nitrogen oxides (NOx) and other pollutants from the atmosphere.
BES 6001 accredited.

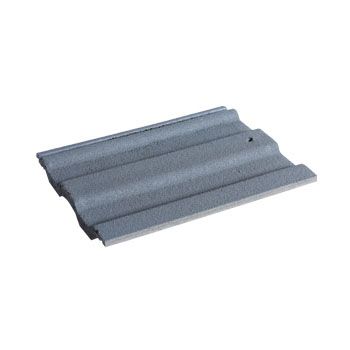

Size of Tile
420mm x 330mm.
Minimum Pitch
30° Granular (75mm headlap).
Maximum Pitch
90°.
Minimum Headlap
75mm.
Maximum Gauge
345mm.
Cover Width
295mm (nominal).
Covering Capacity
9.8 tiles /m² at 75mm headlap.
10.6 tiles /m² at 100mm headlap.
Weight of Tiling
45kg/m² (0.44 Kn/m²) at 75mm headlap.
47kg/m² (0.48 Kn/m²) at 75mm headlap.
Battens Required
2.9 lin.m/m² at 75mm headlap.
3.1 lin.m/m² at 100mm headlap.
Batten Size Recommended
38x 25mm for rafters/supports not exceeding 450mm centres.
50 x 25mm for rafters/supports not exceeding 600mm centres.
Tile Nails
55mm x 3.35mm.
Hanging length
399mm (nominal).
Please note: The effectiveness of the tile or slate to operate at the minimum recommended pitch and lap may be influenced by special circumstances.
Guidance on pitch and lap should be obtained from the Technical Advisory Service for the following:
Interlocking tiles and slates where the roof slope exceeds 6 metres in length and/or the site is rated to be in a severe exposure category.
