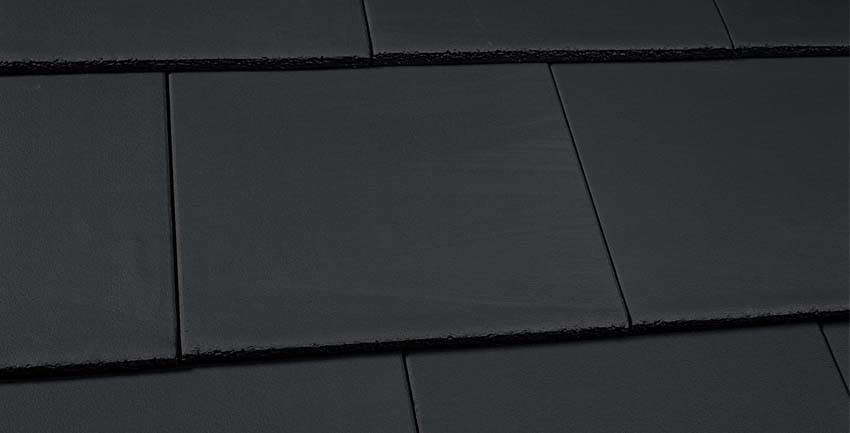

Marley's Duo Edgemere interlocking tile features a well-crafted mock bond in the centre, giving the impression of a small format slate while still offering the same convenient installation of standard interlocking tiles. With a 40% slimmer profile compared to the standard, Duo Edgemere provides a sleek and sophisticated look to your building project and stunning kerb appeal.
Concrete interlocking tiles present a contemporary alternative to conventional plain tiles, renowned for their pleasing and polished appearance. They boast several advantages, such as reduced environmental impact and easy installation, and with a durable concrete structure, they also make a cost-effective option.
Suited to pitches from 17.5° to 90°, these tiles have a nominal thickness of 18mm and can be fastened using the recommended 45mm x 3.35mm slate nails, while still retaining peak performance with a minimum roof headlap of 75mm (22.5° and above) or 100mm (below 22.5°) and a maximum roof gauge of 345mm. You can obtain a net roof covering capacity of 9.7 tiles per square metre at a 75mm headlap or 10.5 tiles per square metre at a 100mm headlap. When employing a 75mm headlap, the approximate weight of the tiling is 44kg/m² (0.43kN/m²), whereas, with a 100mm headlap, it is 47.5kg/m² (0.47kN/m²).
Per net roof, you will need 2.9 linear metres of battens per square metre at a 75mm headlap, or 3.1 linear metres at a 100mm headlap. It is advisable to use 38mm x 25mm battens (in compliance with BS 5534) when the rafter/support distances do not exceed 450mm centres. Alternatively, if you have larger rafter/support intervals that do not exceed 600mm centres, you can opt for 50mm x 25mm battens (also compliant with BS 5534).
Question:
can i buy 2 pieces ?
Answer:
Hi Jackie
No Im sorry only via the pallet load
