Marley Anglia Roof Tile - Mosborough Red

Code:
MARLEY/ANG/MR

Marley Anglia Roof Tile - Mosborough Red A single-lap interlocking concrete tile with the classic clay pantile profile and bullnosed leading edge design. Available in 5 colours, it provides an incomparable palette to work with and a gratifyingly distinctive end result. All M... Read More

Create a wishlist

"Great thank you again "

Lindsey

Description

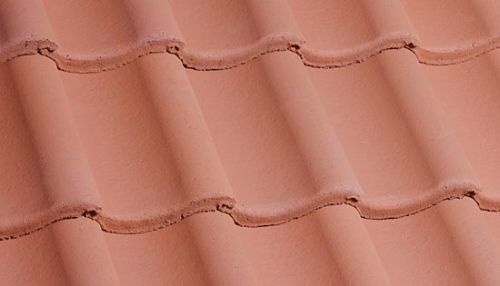

Marley Anglia Roof Tile - Mosborough Red

A single-lap interlocking concrete tile with the classic clay pantile profile and bullnosed leading edge design. Available in 5 colours, it provides an incomparable palette to work with and a gratifyingly distinctive end result.
All Marley concrete interlocking tiles can achieve an 'A+' rating (the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.

  • Has the characteristic profile of clay pantiles.
  • Bullnosed leading edge design.



Size of Tile

  • 387mm x 230mm

Minimum Pitch

  • 30° Smooth (75mm headlap)
  • 30° Granular (75mm headlap)
  • 25° Smooth (100mm headlap)

Maximum Pitch

  • 90°

Minimum Headlap

  • 75mm

Maximum Gauge

  • 312mm

Cover Width

  • 204mm (nominal)

Covering Capacity

  • 15.7 tiles /m² at 75mm headlap
  • 17.1 tiles /m² at 100mm headlap

Weight of Tiling

  • 47kg/m² (0.46 Kn/m²) at 75mm headlap
  • 51kg/m² (0.50 Kn/m²) at 75mm headlap

Battens Required

  • 3.2 lin.m/m² at 75mm headlap
  • 3.5 lin.m/m² at 100mm headlap

Batten Size Recommended

  • 38 x25mm for rafters/supports not exceeding 450mm centres
  • 50x25mm for rafters/supports not exceeding 600mm centres

Tile Nails

  • 38mm x 3.35mm

Hanging length

  • 370mm (nominal)

456 Tiles Per Pallet

38  Tiles Per Band

There are no product specifications to show.
