Designed for pitches from 30° to 90°, Marley's machine-made Acme Single Camber Clay Plain Tile is an excellent choice for any roofing project. Available in a pallet of 1260, these tiles offer superior design versatility and allow you to form both traditional and contemporary low-pitch roofs, adding the warm charm of clay. With a range of colours that dictate either smooth or fine-sanded finishes, you can choose the right one for your project.

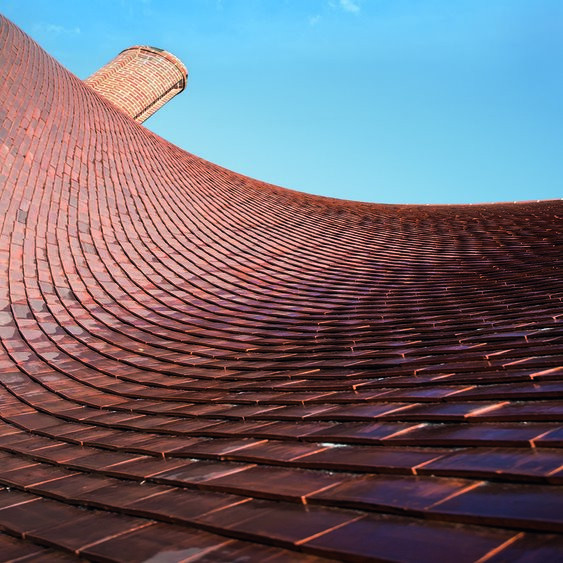

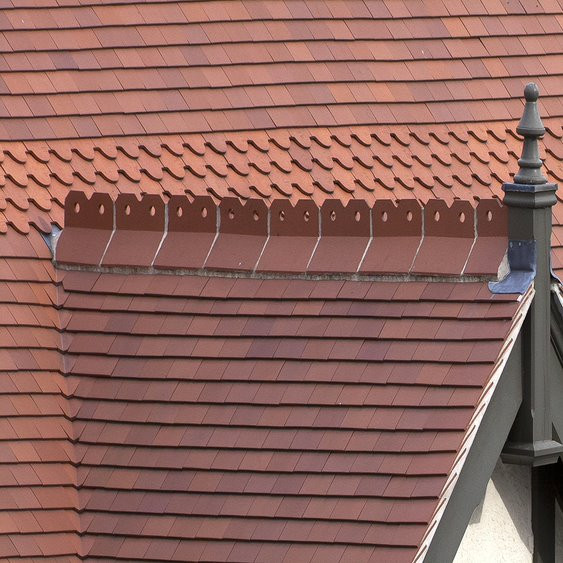

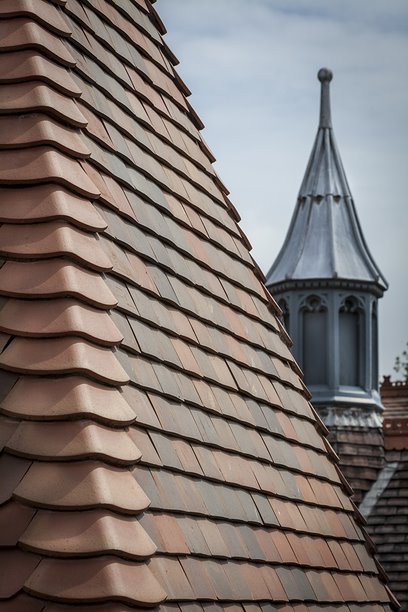

For centuries, clay plain roofing tiles have adorned modern and traditional homes, showcasing their iconic red clay roofs. By including unique finishes, clay tile roofing materials deliver a distinct look for your property with machine-made or handmade variants designed to last.
There are no product downloads to show.
Question:
What are the headlap, batten spacing and weight etc specs of these tiles please?
Answer:
TECHNICAL DATA
Size of tile - 265mm x 165mm
Minimum pitch* - 30°
Maximum pitch - 90°
Minimum headlap - 65mm (roof) 35mm (vertical)
Maximum gauge - 100mm (roof) 115mm (vertical)
Tile thickness - 11mm (nominal)
Cover width - 165mm (nominal)
Covering capacity (net) - 60 tiles/m2 at 100mm gauge (roof) 53 tiles/m2 at 115mm gauge (vertical)
Weight of tiling (approx.) - 64kg/m2 (0.63 kN/m2) at 100mm gauge (roof) 56kg/m2 (0.55 kN/m2) at 115mm gauge (vertical)
Battens required (net) - 10.0 lin.m/m2 at 100mm gauge (roof) 8.7 lin.m/m2 at 115mm gauge (vertical)
Batten size recommended - 38mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
Tile nails - 38mm x 2.65mm
Question:
Hi, Can you send me a sample of the Marley Acme Single Camber Clay Plain Roof Tile - Red Smooth Please?
Answer:
Samples can be requested direct from the suppliers on the link below.
https://www.marley.co.uk/samples
