Manthorpe GW294 Horizontal Refurbishment Cavity Tray - 450mm x 155mm

Code:
GW294

The GW294 Refurbishment Horizontal Cavity Tray is designed to provide protection where a new horizontal roof abutment meets an existing wall. Integral stop ends and a hook feature remove the need to overlap the trays giving a total effective length of 450mm. You can also use th... Read More

£5.70 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Everything was faultless from orde…"

John Rowland

Description

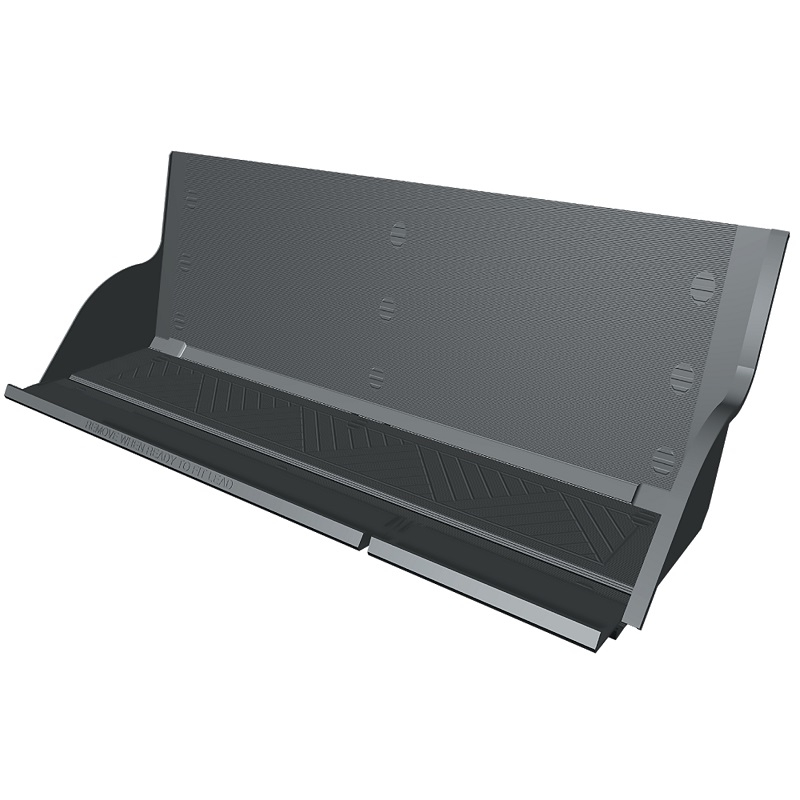

The GW294 Refurbishment Horizontal Cavity Tray is designed to provide protection where a new horizontal roof abutment meets an existing wall. Integral stop ends and a hook feature remove the need to overlap the trays giving a total effective length of 450mm.

You can also use this tray where the original system has been found to have degraded or even left out of the wall construction. Alternatively, it can be used in new build horizontal situations or in conjunction with the GW295 Horizontal Tray. The tray has a unique front mortar clip that can be removed at any time once the mortar has set leaving a 25mm deep aperture into which the lead is inserted and secured with lead wedges.

Features & Benefits: Manthorpe GW294 Horizontal Refurbishment Cavity Tray - 450mm x 155mm

  • Horizontal cavity tray designed for protection at horizontal roof-wall junctions
  • Integral stop ends and hook feature for non-overlapping installation
  • Total effective length of 450mm
  • Use in refurbishment or new build horizontal situations
  • Compatible with GW295 Horizontal Tray
  • Unique front mortar clip for lead insertion
  • Secured with lead wedges
  • Removable mortar strip for easy lead application

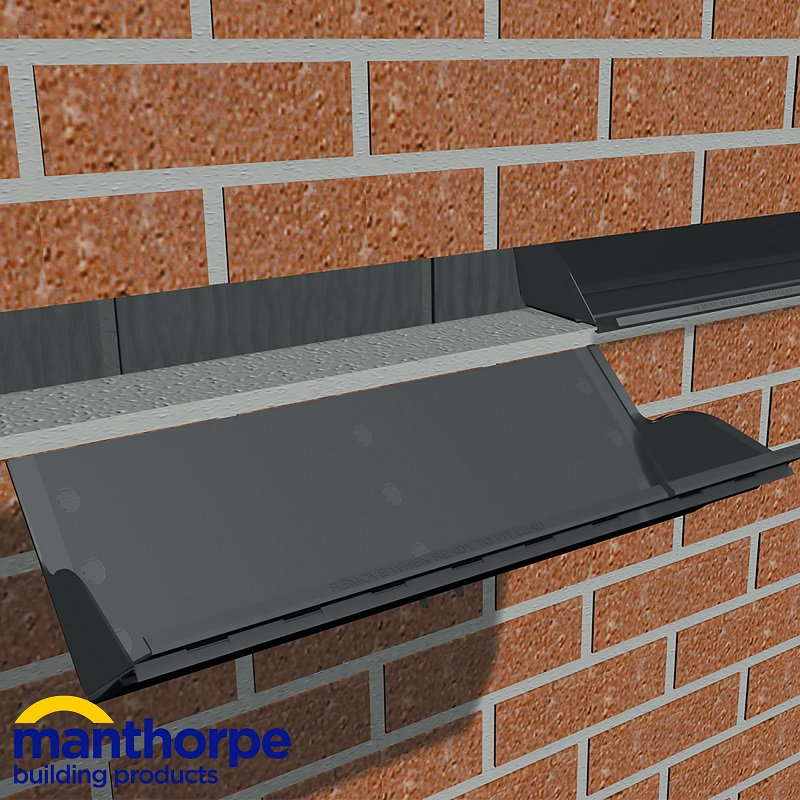

Installation:

  • Trays should be positioned between 75-100mm above the finished roof line depending on the detail and lead drop required.
  • Bed the trays down onto a thin layer of mortar, interlocking each tray over the adjacent tray at the stop end.
  • A weep vent should be placed every 450mm to drain away any collected water.

Please note:

  • A G950 Weep Vent or G951 Peep Weep must be used in each tray to drain away the collected water.
  • The GW294 Refurbishment Tray can also be supplied with short, standard or long lead stapled and sealed to the tray in either code 4 or code 5 (special order).

Dimensions

Length 450mm

Details

Height 155mm Material Polypropylene

Questions & Answers

Question:

Are these cavity trays suitable for a 125mm cavity?

Answer:

100%
