Home Roof Vents Cavity Trays Manthorpe GW293-BS Catchment Tray RH - 330mm

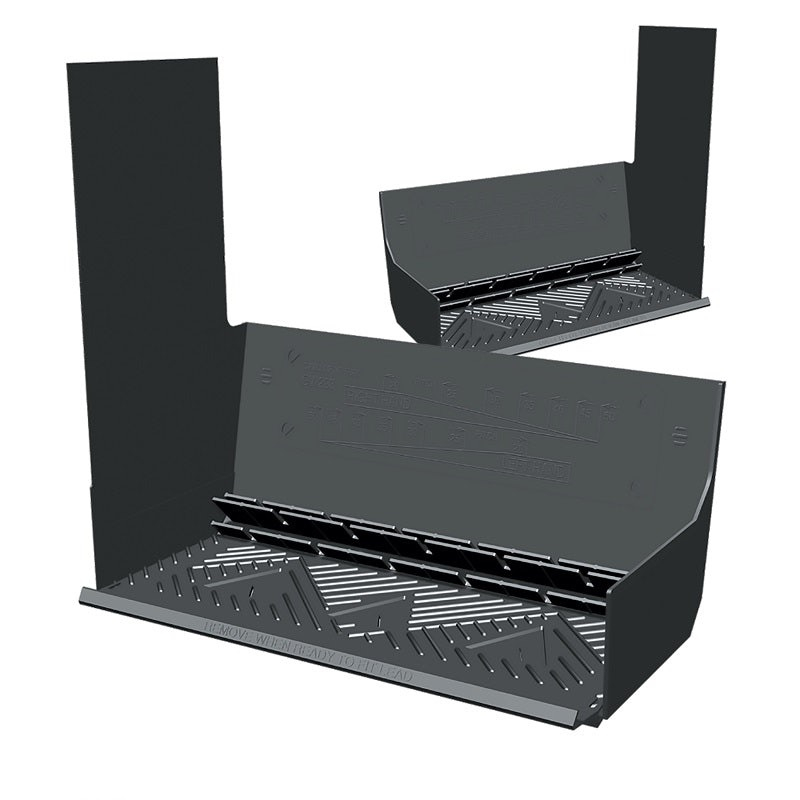

Manthorpe GW293-BS Catchment Tray RH - 330mm

Code:
GW293-BS RH
Brand:
Manthorpe

This right-handed block catchment tray from Manthorpe is ideally suited to applications of larger coursing heights (typically 150mm and 225mm) where random stone or blockwork is specified. Black in colour, the tray is made from polypropylene and compatible with all roof pitche... Read More

View full product details
View questions about this product
£6.41 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Nov 25th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Great service"

Elliot Nash
Description Specification Downloads Q&A

Description

This right-handed block catchment tray from Manthorpe is ideally suited to applications of larger coursing heights (typically 150mm and 225mm) where random stone or blockwork is specified. Black in colour, the tray is made from polypropylene and compatible with all roof pitches. Placed at the lowest point of the abutment, it has upstands at either end for water collection, which run down from the trays above and reroute it out of the wall. A flexible perpend protector stops driving rain from penetrating the outer wall and tracking across the masonry.

With a unique front mortar clip that can be withdrawn when the mortar is set, a 25mm deep aperture is left for lead to be inserted and secured with lead wedges. This tray can be provided with short or long lead stapled and sealed in either Code 4 or Code 5 (special order) lead.

Features & Benefits: Manthorpe GW293-BS Catchment Tray RH - 330mm

  • Black polypropylene structure
  • 330mm length and for all roof pitches (150mm and 225mm coursing)
  • Suitable for cavity widths from 50mm to 100mm
  • From the blockwork stepped tray system
  • Ideal for the bottom of the run
  • Extended stop end for larger coursing
  • Includes mortar strip that can be withdrawn for lead placement
  • Can be provided with lead attached

When installing, strike a line or use a dummy truss offset 75mm from the proposed finished roof line. One of these trays is best placed in every course at the line's intersection.

When installing, strike a line or use a dummy truss offset 75mm from the proposed finished roof line. One of these trays is best placed in every course at the line's intersection.

Please note:

  • A G950 Weep Vent is a must for use of this tray. It drains away the water that gets collected.
  • Do not fit the trays into the nearest perp end. Blockwork will need to be cut to achieve the correct pitch, but it will be hidden by the lead flashing.
  • Do not dry bed the trays - lay on a thin skim of mortar.

Details

Material Polypropylene
