Manthorpe G953-CL Diamond Weep Clear

Code:
G953-CL
Brand:
Manthorpe

Constructed from durable polypropylene, this Clear G953-CL Diamond Weep from Manthorpe offers a subtle yet robust solution for your cavity wall drainage needs. Its unique, diamond-shaped profile enhances drainage flow along the channel's base, minimising debris buildup and pro... Read More

View full product details
View questions about this product
£0.62 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Good price and service"

David White
Description Specification Downloads Q&A

Description

Constructed from durable polypropylene, this Clear G953-CL Diamond Weep from Manthorpe offers a subtle yet robust solution for your cavity wall drainage needs. Its unique, diamond-shaped profile enhances drainage flow along the channel's base, minimising debris buildup and promoting self-cleaning for efficiency.

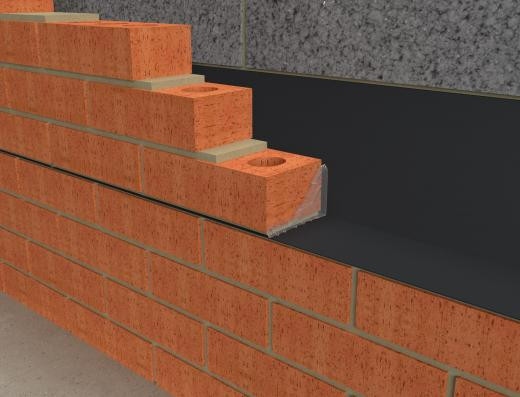

The ribs along the angled outer walls create a robust mortar key for a secure fit within the outer leaf construction. The diamond-shaped outlet easily details into the mortar joint and sits flush with the brickwork, while the tapering outlet ensures hassle-free cleaning. With a rear opening of 65mm, matching the full height of the perpend joint, this G953 Diamond Weep follows NHBC Technical Extra 17 guidelines for optimal drainage inlet from within the cavity. While offering a 4mm minimum opening for water drainage, it acts as a barrier against the intrusion of large insects.

Features & Benefits: Manthorpe G953-CL Diamond Weep Clear

  • A robust and discreet solution for cavity wall drainage
  • Enhances drainage flow, promotes self-cleaning and debris removal
  • Ribs along angled outer walls ensure a secure fit within the outer leaf construction
  • Diamond-shaped outlet sits flush with brickwork for easy detailing into the mortar joint
  • Prevents entry of large insects
  • 102mm x 65mm x 9.5mm size
  • Made from injection-moulded polypropylene
  • Replaces a single mortar joint
  • Drains lintels and cavity trays

When it comes to installation, simply embed the G951 Peep Weep into open perp joints, leaving around 10mm protruding from the brick face. Adhering to NHBC guidelines, ensure that the G950 Weep Vent is spaced at no greater than 900mm centres above DPC, and for optimal performance, position weep holes at every 450mm, with a minimum of two per opening above windows and doors.

Details

Material Polypropylene
