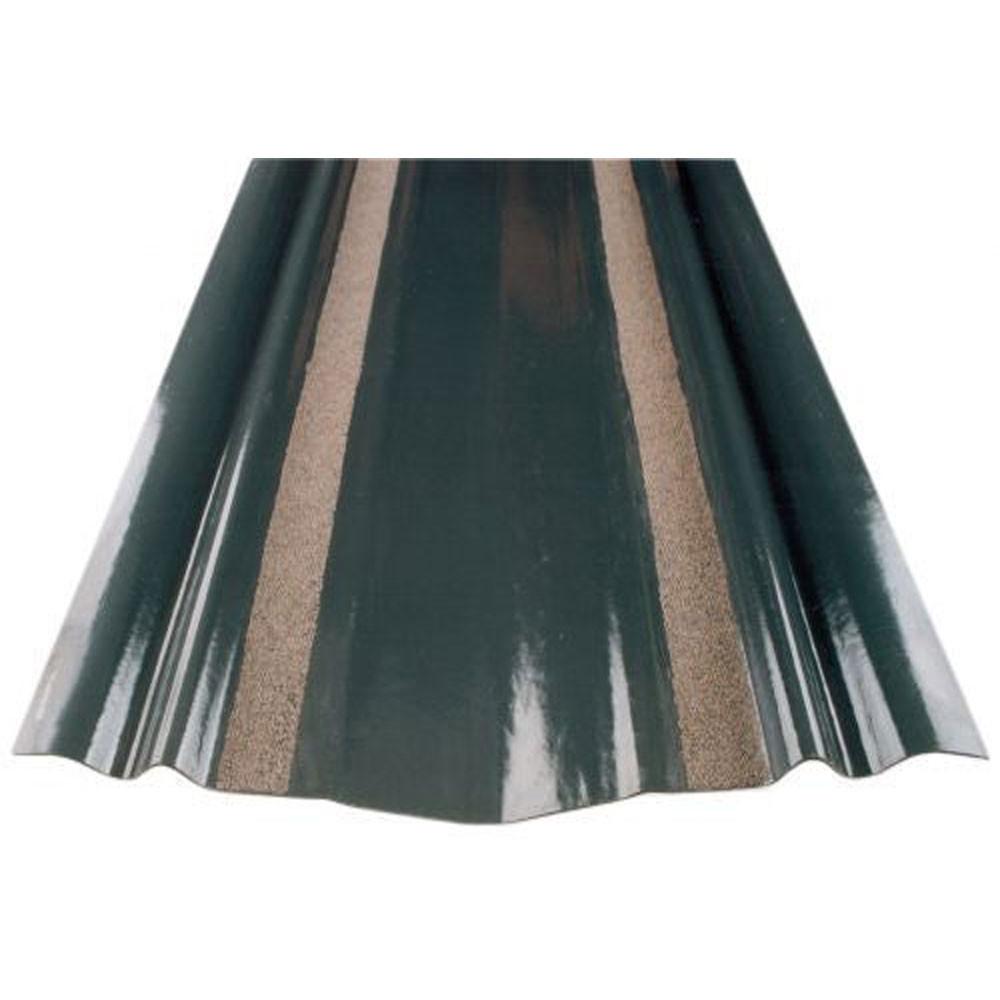

Harcon Corodrain DX30 Heavy Duty D-Type Universal Valley Trough - 3m

Code:
DX30
Brand:
Harcon

Ideal for use alongside single lap tiles in limited applications, this Corodrain D-Type Universal Valley Trough stands as a narrow valley trough, identified as heavy duty (type: DX). It is equipped with a 35mm sanded strip to enhance mortar adhesion and is used for roofs with ... Read More

View full product details
View questions about this product
£44.18 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Friday, Nov 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"Delivered to the of Wight cheaper…"

Liz Hawkins
Description Specification Downloads Q&A

Description

Ideal for use alongside single lap tiles in limited applications, this Corodrain D-Type Universal Valley Trough stands as a narrow valley trough, identified as heavy duty (type: DX). It is equipped with a 35mm sanded strip to enhance mortar adhesion and is used for roofs with pitches ranging from 17.5° to 55°, accommodating a maximum 15° variation between two rafter pitches.

Created with compatibility in mind, this system is tailored for interlocking tiles while remaining adaptable for both natural and manufactured slate usage. It is perfect for prestige buildings and harsh environments and is less susceptible to theft.

Features & Benefits: Harcon Corodrain DX30 Heavy Duty D-Type Universal Valley Trough - 3m

  • Manufactured from GRP in a grey/blue colour
  • As durable as lead with resistance to acid rain and UV light
  • 3m length x 410mm width x 1.6mm thickness
  • 2.4kg per m²
  • Heavy duty (type: DX)
  • For roof pitches ranging from 17.5° to 55°
  • Accommodates a maximum 15° difference between two rafter pitches
  • 35mm sanded strip to enhance mortar adhesion
  • For use with interlocking tiles and natural and manufactured slate

Manufactured from GRP, high-quality unfilled polyester resin with glass fibre reinforcement, this trough is grey/blue in colour and at least as durable as lead. It offers high resistance to acid rain and UV light, as well as a smooth finish that restricts debris build-up and the growth of lichen and moss.

Standards & Certification

  • Certified: BBA Approved under Cert No. 89/2153
  • Fire resistance: SAB to BS476 part 3 and Class 3 BS476 part 7

Dimensions

Length 3m Width 410mm

Details

Type Valley Colour Grey Blue Minimum Pitch 17.5 Degrees Range Corodrain

Questions & Answers

Question:

Good morning can this product be used with box profile roofing sheets *(METAL) OR DO YOU HAVE GULLIES THAT DO

Answer:

It would technically work but you would have to make some on-site install adjustments
