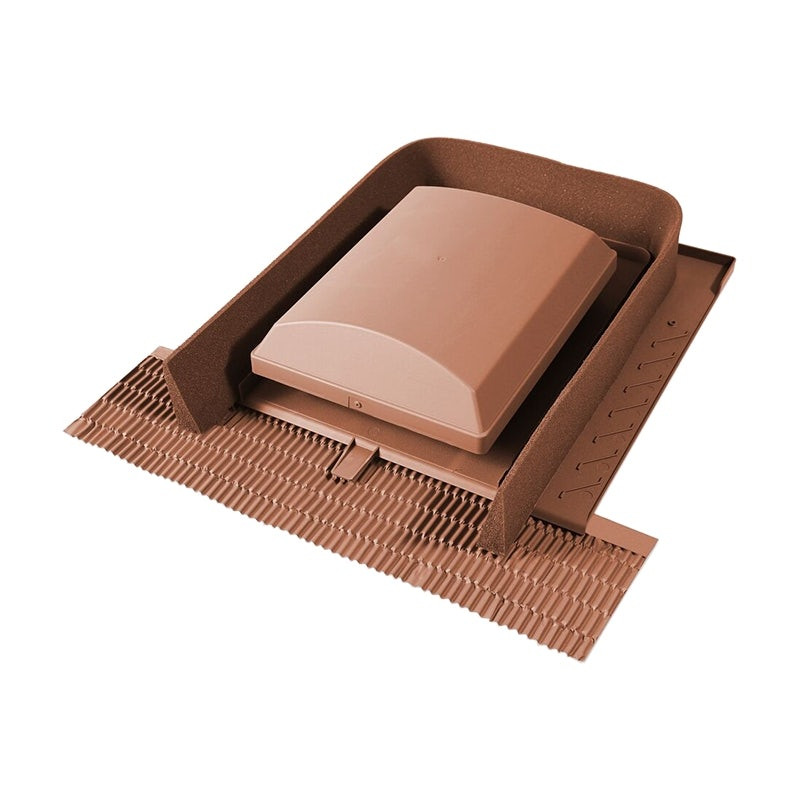

Glidevale Versa-Tile G5 Universal Ventilator & Terminal

Code:

GLIDEVALE-G5

Brand:

Glidevale

View full product details

View questions about this product

Colour

from

£46.06 Incl. VAT

Earn points

Delivery from: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Amy

Description

The Glidevale Versa-Tile G5 Universal Ventilator and Terminal eliminates the headache of tile profile matching by offering a single, adaptable solution for all roof space ventilation needs. The G5 goes beyond mere ventilation, as it seamlessly transforms into a Soil Vent Pipe (SVP) and mechanical extraction terminal with the addition of a pipe adaptor and flexible pipe, providing a comprehensive answer to diverse roofing requirements.

Made from robust ABS (Acrylonitrile Butadiene Styrene) and polypropylene material, this vent has a guaranteed 20,000 mm² ventilation area. It also features the groundbreaking aluminium AluFlash at the forefront - a mouldable and flexible adhesive-backed technology ensuring impeccable weathering performance.

Features & Benefits: Glidevale Versa-Tile G5 Universal Ventilator & Terminal

Universal design suits nearly all interlocking single lap tiles
Innovative low profile
Available in a range of UV-stable colours
ABS/polypropylene construction with AluFlash for superior performance
Tested for driving and deluge rain resistance
20,000 mm² ventilation area
Suitable for roof pitches between 20° and 60°
Designed to BS EN ISO 9001

What's more, this ventilator comes equipped with an underlay opening protector, strategically designed to preserve the functionality of the underlay where it is cut. In compliance with BS 5250, this protector directs any moisture that may penetrate the roof covering higher up the slope, diverting it around the opening and ensuring optimal performance.

Specification

Details

Type Tile Vent Colour Black
Brown
Grey
Red
Red Streak
Terracotta Material Polypropylene Profile Universal

Minimum Pitch 20 Degrees

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Will this fit on a 150mm flexi pipe ? I don't want to condense it

Answer:

No, the adaptor is 110mm

Question:

Hi, I have a 4-inch bathroom fan on the ceiling, would the ducting from this fan fit this vent?

Answer:

I have emailed you a quote showing all the relevant fittings

Question:

Hi does this come with everything to allow connection of 100mm extractor fan duct?

Answer:

No, you would need

https://www.roofingsuperstore.co.uk/product/glidevale-pipe-adaptor-spigot-interface-plate-for-g-range-vents.html and https://www.roofingsuperstore.co.uk/product/glidevale-110mm-flexible-soil-pipe-jubilee-clips-for-extraction.html
