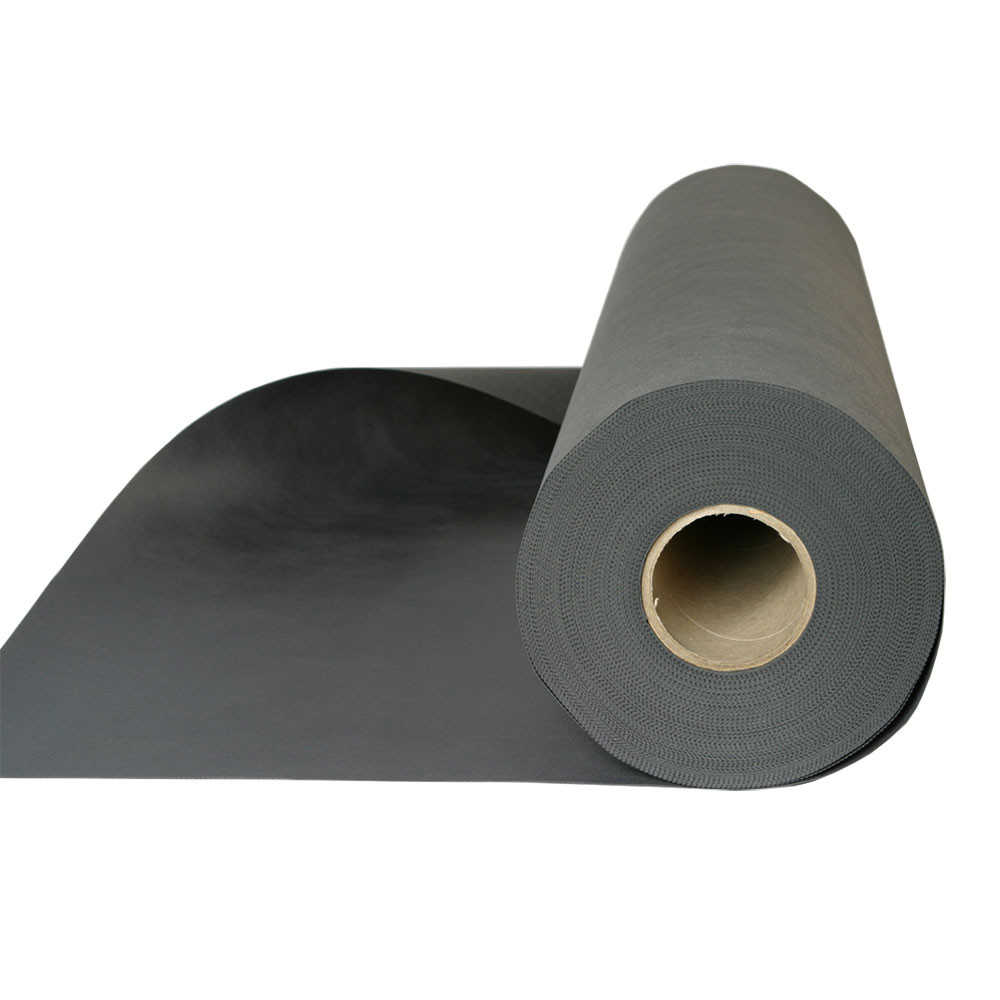

A Proctor Group Frameshield 100 Condensation Control Breather Grey Membrane - 100m x 2.7m Roll

Code:
A15105
Free UK Delivery

This item is out of stock and not available to purchase.

Suitable for use in light steel frame applications and timber frame wall construction, this Frameshield 100 breather membrane protects against wind-driven dust, snow and rain. Once installed, it allows the controlled escape of vapour from within the timber frame due to its hig... Read More

Create a wishlist

"Great"

Mark Flynn

Description

Suitable for use in light steel frame applications and timber frame wall construction, this Frameshield 100 breather membrane protects against wind-driven dust, snow and rain. Once installed, it allows the controlled escape of vapour from within the timber frame due to its high vapour permeability whilst preventing the entry of moisture and rain.

Supplied in roll form, this Frameshield 100 membrane should be secured to frames with austenitic stainless steel nails or staples at no more than 500mm centres. You can ensure its reliability by overlapping upper layers over lower layers and staggering vertical joints. Once fixed to the wall, the Frameshield 100 membrane should be covered within three months.

Features & Benefits: A Proctor Group Frameshield 100 Condensation Control Breather Grey Membrane - 100m x 2.7m Roll

  • 270m² roll size
  • Grey finish
  • 0.006m water vapour resistance Sd
  • Spunbonded, polypropylene material
  • Applied in the factory during manufacture or on site
  • Restricts ingress of moisture and rain
  • High water permeability
  • Effective protection during construction

Standards & Certification

  • Conforms to BS401

Dimensions

Length 100m Depth 0.5mm Width 2.7m

Details

Weight 100g/m2 Thickness 0.5mm Application Steel Frame
Timber Frame
Permeability Vapour Permeable
Range Frameshield

Questions & Answers

Question:

I am converting the garage into an office, would you recommend this product for applying to the outside of the timber stud work?

Answer:

Yes this would suitable for wrapping around the building before applying cladding.
