Forticrete Gemini Interlocking Concrete Roof Tile

Code:

FORTICRETE-BUZ-7908-G501

Brand:

Forticrete

Forticrete Gemini interlocking concrete roof tiles are available in 12 colours suitable for roof pitches down to 22.5º. Forticrete manufactures Gemini interlocking concrete roof tiles for a tight interlock and a fantastic aesthetic appeal. These tiles form part of Fortic... Read More

View full product details

View questions about this product

Colour

from

£1.69 Incl. VAT

Earn points

Delivery from: 20-25 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Alwyn Mulryne

Description

These tiles form part of Forticrete's Ecotile range. This means these concrete roof tiles are designed and manufactured while keeping carbon dioxide emissions to a minimum, making them more eco-friendly. Combined with the fact that you need need less tiles per m2 than others, Forticrete Gemini tiles offer a 40% reduction in carbon dioxide emissions per m2.

Dimensions

Length: 270mm.
Hanging length: 243mm.
Width: 337mm.
Cover width: 316mm.
Height: 15mm.
Pitch:

22.5° to 29° pitch - 16.6/m2 (80mm min. headlap / 190mm max. batten spacing).

22.5° to 29° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).

30° to 70° pitch - 16.3/m2 (75mm min. headlap / 195mm max. batten spacing).

30° to 70° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).

Batten size:

38mm x 25mm for spans up to 450mm.

50mm x 25mm for spans from 450mm x 600mm.

Please note that deliveries to Scotland for this product will incur additional delivery charges.

Specification

Details

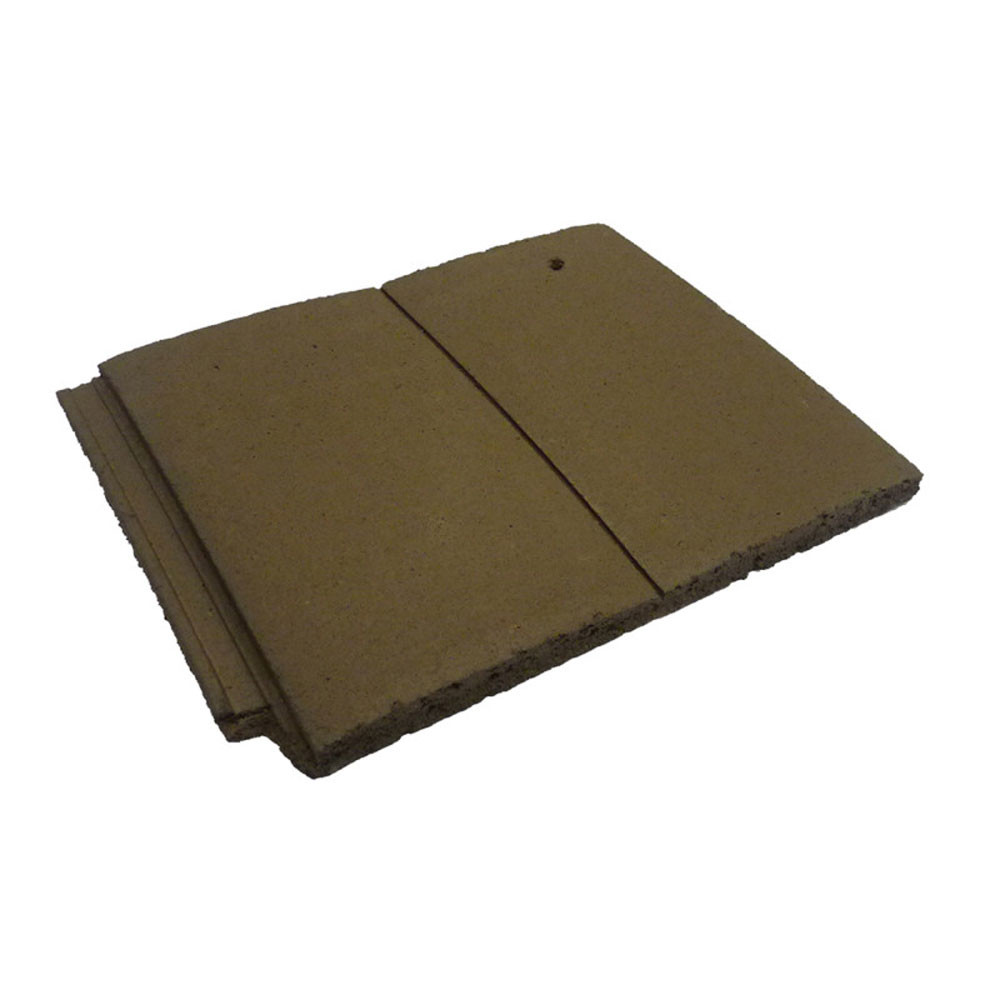

Colour Brown
Red

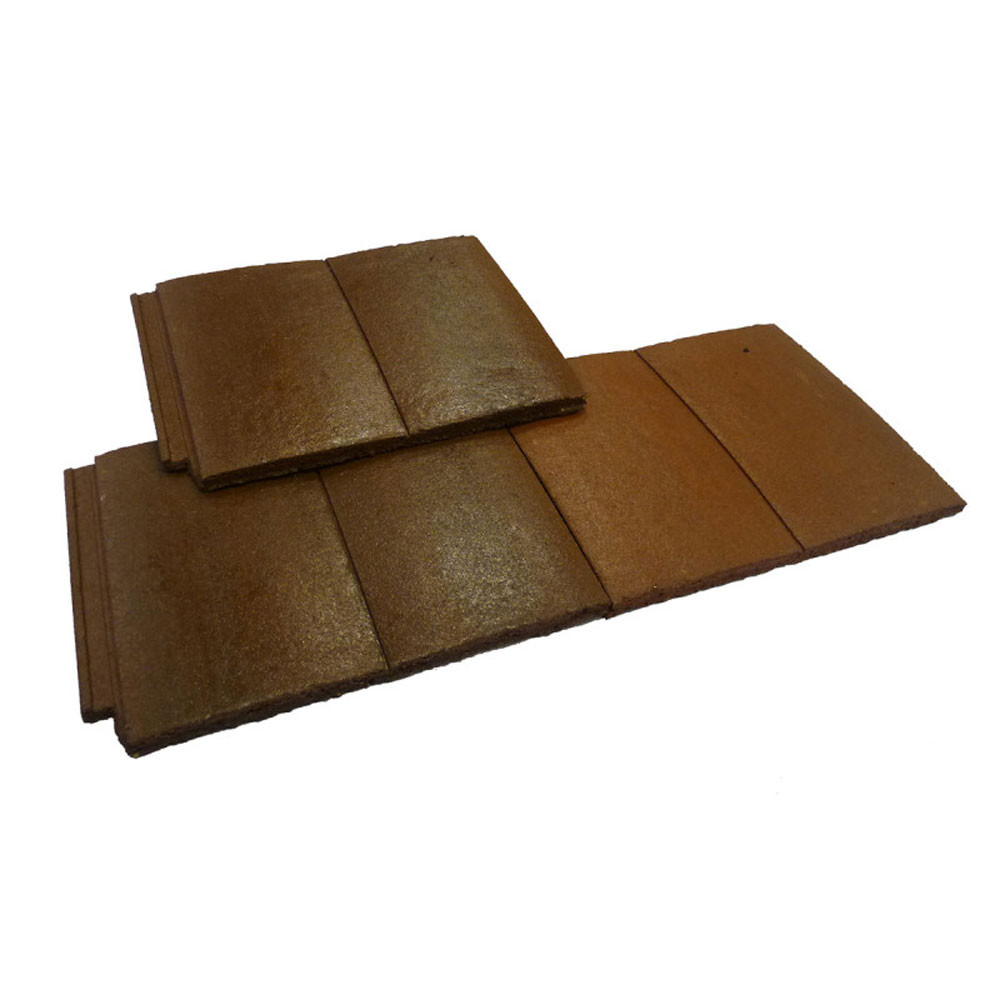

Russet Mix

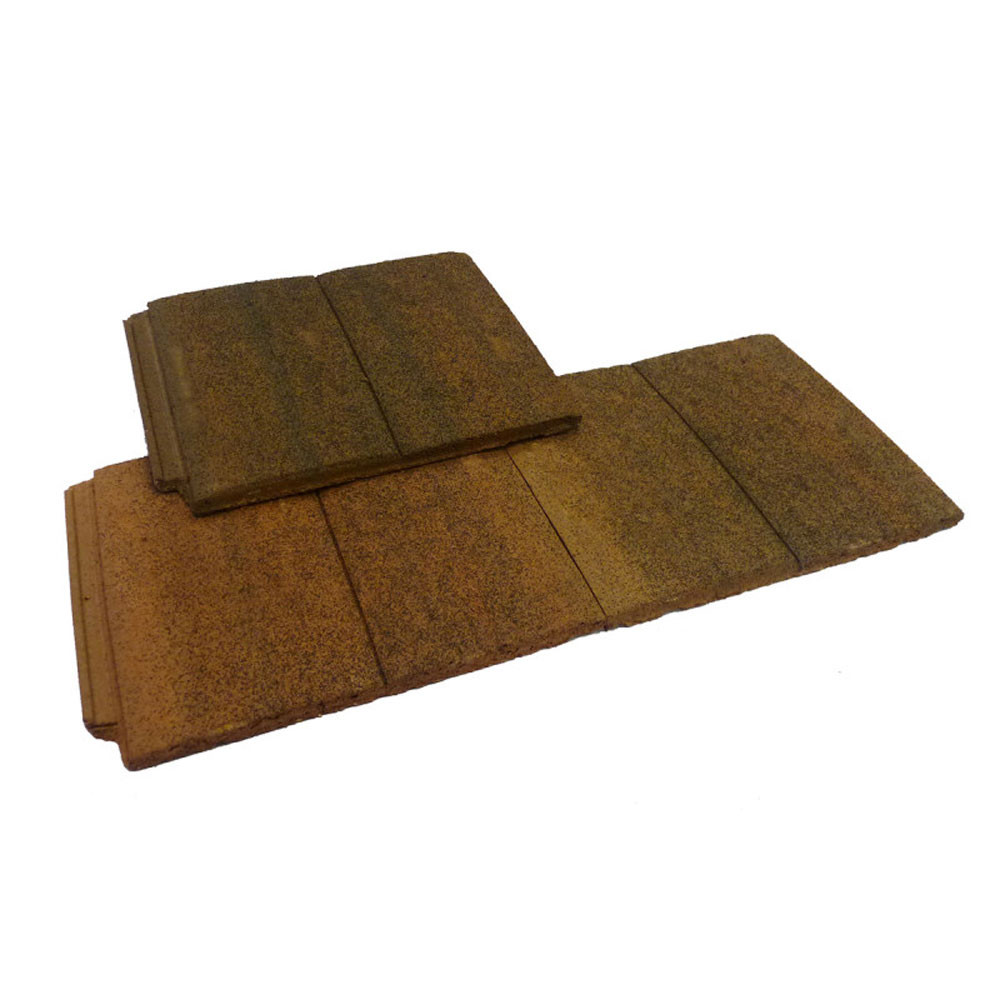

Sandfaced Ember Blend

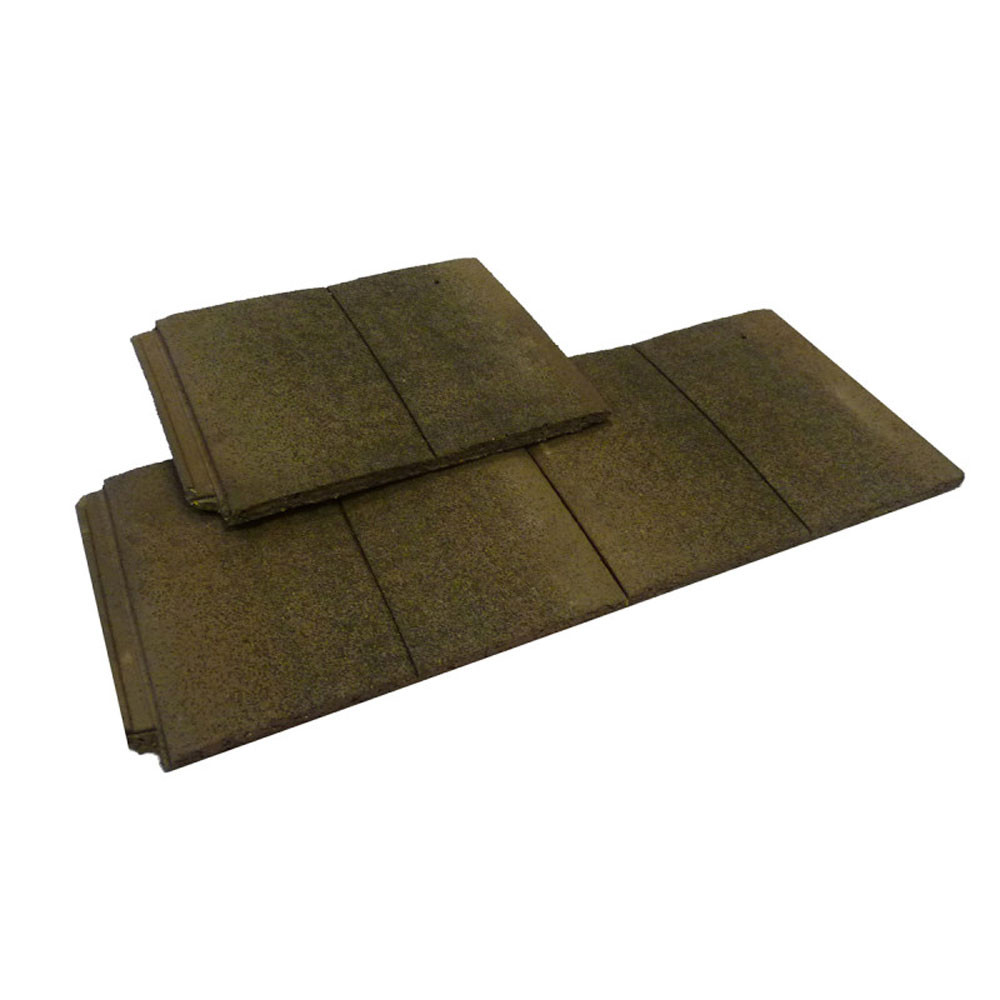

Sandfaced Mercia Blend

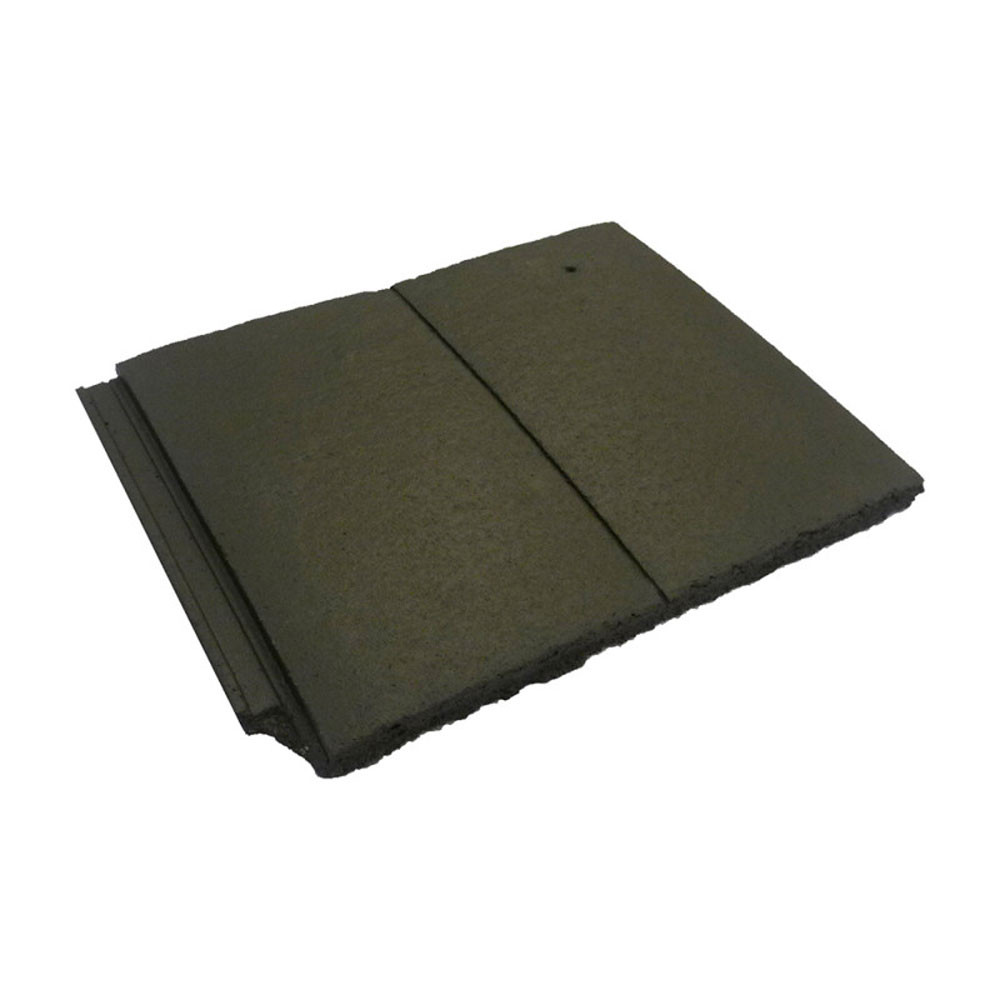

Slate Grey

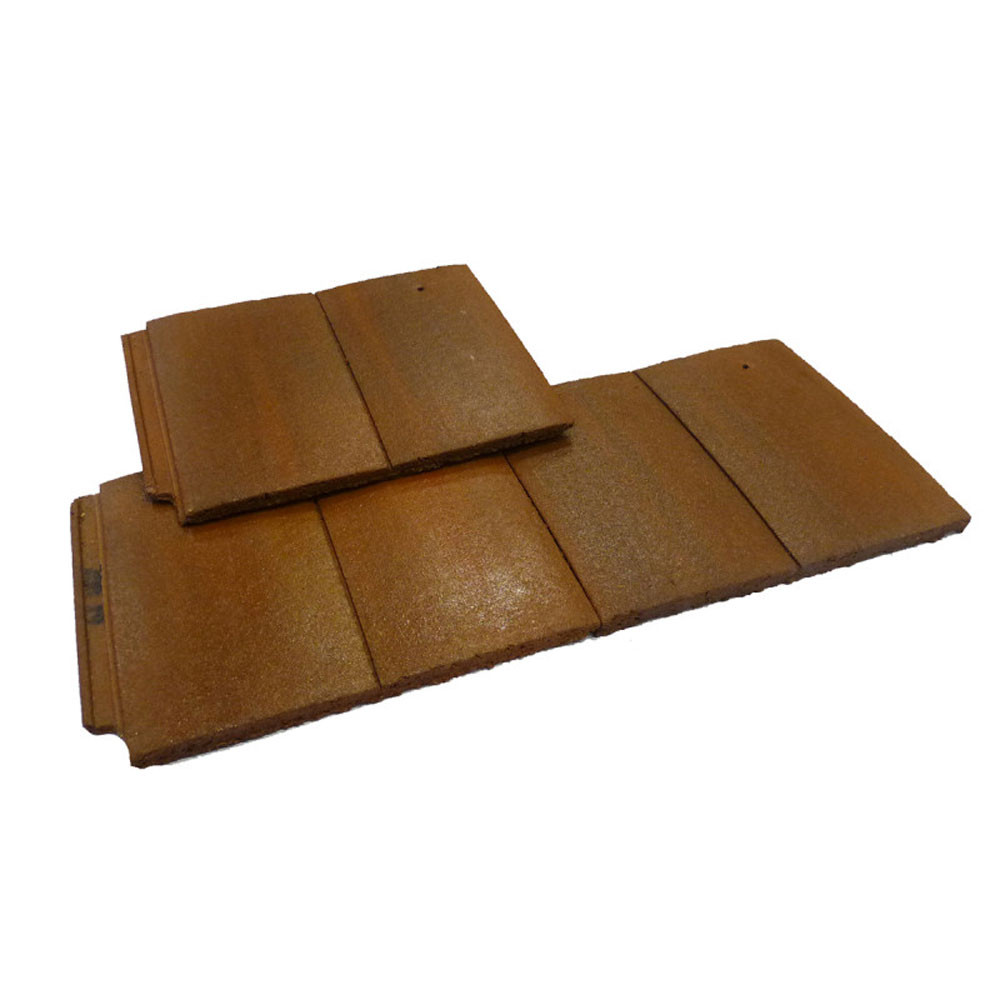

Sunrise Blend Material Concrete Profile Gemini Interlocking Minimum Pitch 22.5 Degrees
30 Degrees

Maximum Pitch 70 Degrees
29 Degrees

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Which dry verge system do you use with this tile

Answer:

you will need this link

https://www.roofingsuperstore.co.uk/product/forticrete-gemini-and-minislate-dry-verge-pack-of-15.html

Question:

How many tiles are there in m2

Answer:

Depends on the pitch, please see below.

Pitch: 22.5° to 29° pitch - 16.6/m2 (80mm min. headlap / 190mm max. batten spacing).

22.5° to 29° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).

30° to 70° pitch - 16.3/m2 (75mm min. headlap / 195mm max. batten spacing).

30° to 70° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).

Question:

Where can I see the colours?

Answer:

The different colours are pictured so if you change the colour on the drop down menu, you will see the colours in the image on the listing change accordingly.

Question:

Can you get this product in grey?

Answer:

Yes please find a link to the grey option below.

https://www.roofingsuperstore.co.uk/product/forticrete-gemini-interlocking-plain-tiles-slate-grey.html

Question:

What gauge do they go on

Answer:

The batten gauge varies depending on pitch you are installing at. 22.5° to 29° pitch - 16.6/m2 (80mm min. headlap / 190mm max. batten spacing). 22.5° to 29° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing). 30° to 70° pitch - 16.3/m2 (75mm min. headlap / 195mm max. batten spacing). 30° to 70° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).
