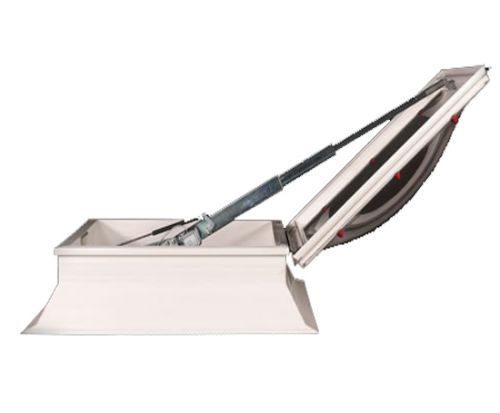

Em Smoke Vent Double Glazed Clear Dome & Kerb - 1000mm x 1000mm

Name: Em Smoke Vent Double Glazed Clear Dome & Kerb - 1000mm x 1000mm
Brand: Whitesales
SKU: EmVent/S9
Price: 2590.26 GBP
Availability: LimitedAvailability

Code:

EmVent/S9

Brand:

Whitesales

Free UK Delivery

Please note this dome & kerb will suit a structural opening of 1m x 1m. Em-Vents are electrically operated smoke vents designed to allow the release of smoke frombuildings in the case of fire. This enables key fire escape routes, such as stairwells and corridors, to be ... Read More

View full product details

View questions about this product

Create a wishlist

Vytas Gece

Description

Please note this dome & kerb will suit a structural opening of 1m x 1m.

Em-Vents are electrically operated smoke vents designed to allow the release of smoke frombuildings in the case of fire. This enables key fire escape routes, such as stairwells and corridors, to be kept usable withminimal smoke build up. In addition to this, Em-Vents can be supplied with the Em-Dome glazed rooflight, bringing the added benefit of natural daylight into the building.

Features

Fully tested to EN 12101–2
Opens to 140° to assist compliance with the new Smoke Ventilation Standard EN 12101
Regulation ADB and for electric roof access
Electric open and close enables simple reset
Rooflight provides light to stairwells
Stand alone Opening Vent (OV)
Integrated Automatic Opening Vent (AOV)

OVs (Opening Vents) and AOVs (Automatic Opening Vents) are required to meet the relevant Building Regulations for ventilating escape routes. The Regulations stipulate a minimum free ventilation area (normally 1.0m² or 1.5m²), and require units to open to either 90° or 140° depending on a number of factors. Ventilation areas can be achieved with a variety of square or rectangular Em-Domes and can be used in conjunction with Em-Curb upstands or T-Collar and Em-Collar adaptors.
Opening the rooflight is by means of a 24V DC electric actuator. For OVs we can provide a stand alone control panel with a comprehensive range of accessories – for AOVs our control panel can interface with the main Building Management System (BMS) or accessories. Due to the variety of BMSs that are required to satisfy the relevant authorities, we recommend that a qualified mechanical and electrical company is employed to plan and install the system.
