The AeroDek Elegance Satin Tiles are designed to provide an attractive and economic finish for all types of roof down to 10° pitch. The system, which is available in three colours, comprises of coated, zinc aluminium galvanised steel tile panels with a unique four process coating system providing a depth and opacity of lustre unparalleled in the metal roofing industry.

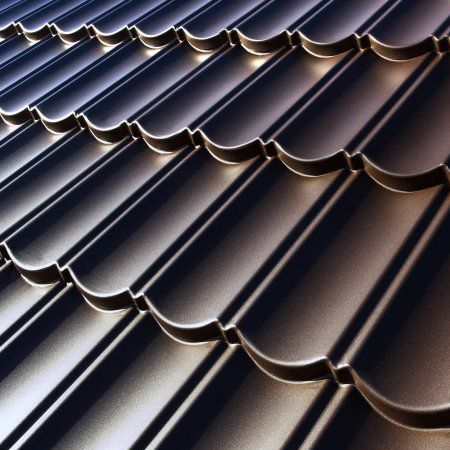

AeroDek Elegance's soft satin finish stylishly emulates the appearance and texture of clay roof tiles. It even feels like clay to the touch. show me

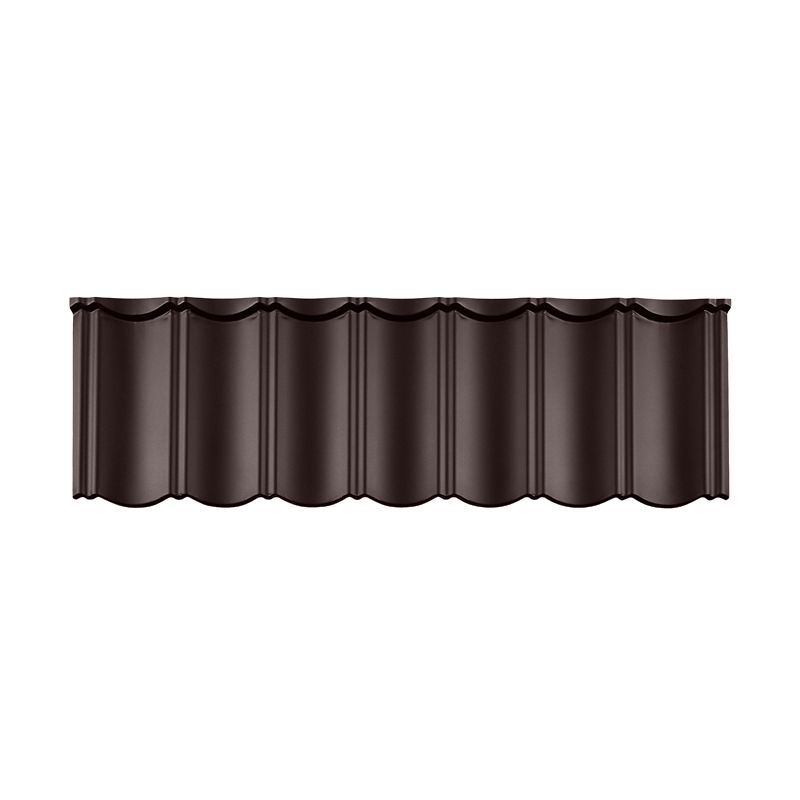

A comprehensive choice of accessories, including eaves, ridge and tile ventilators, completes the system which is totally dry fixed throughout. Each tile has a downturned front edge and an upturned rear edge, and is profiled to provide a strong overlapping and interlocking roof covering. AeroDek tiles are produced in large format. This enables faster installation with fewer fixings compared to traditional tile or slate roofing.
Once installed AeroDek tiles provide a durable weathertight and low maintenance roof or vertical covering.
Minimum pitch : 10°.
Maximum pitch : 90°.
Overall size of tile : 1324mm x 410mm.
Cover size of tile : 1260mm x 370mm.
Gauge : 370mm.
Linear cover width : 1260mm.
Coverage : 0.46m2 per tile.
2.145 tiles per m2.
Weight : 2.55kg per tile.
5.47kg per m2.
Fixings : 50mm x 2.5mm coated decra nails.
Fixings per tile : 4 nails.
Battens required : 2.7 linear metres per m2 (plus wastage).
Rafter centres - maximum :
450mm - 38mm x 25mm.
600mm - 50mm x 25mm.
900mm - 50mm x 50mm.
1200mm - 50mm x 50mm.
1500mm - 50mm x 65mm.
