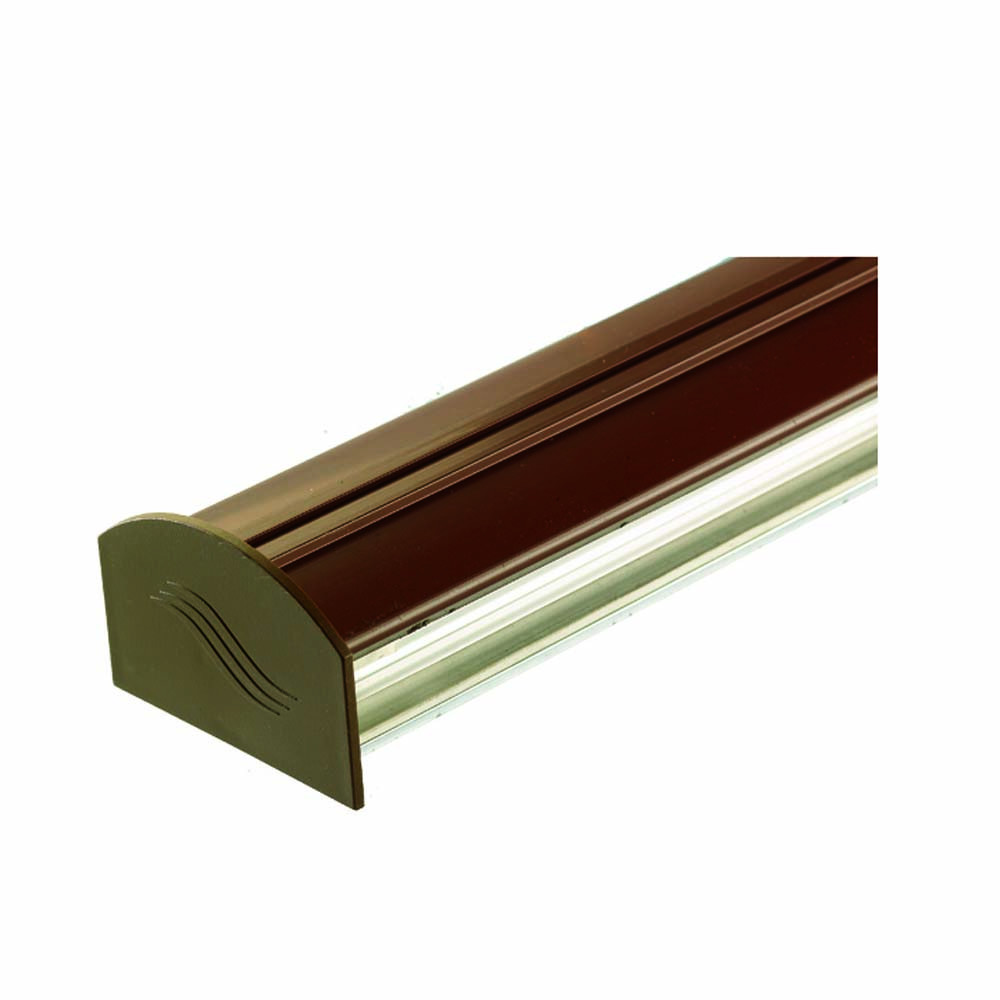

Corotherm Glazing Bar Cap & Base With End Cap

Code:

COROTHERM-GLAZING-BAR-CAP-BASE-END-CAP

Brand:

Perfect for complementing Corotherm's range of Twinwall polycarbonate sheets, this Corotherm glazing bar cap and base, accompanied by an end cap, is designed to deliver a sleek and visually pleasing finish and provide superior support and structural integrity. Available in eith... Read More

View full product details

View questions about this product

Length

Colour

from

£28.73 Incl. VAT

Earn points

Delivery from: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Robert Yarde

Description

Available in either brown or white, this glazing bar allows you to harmonise your conservatory, lean-to or other outbuildings with your existing façade. What's more, it is compatible with 10mm, 16mm and 25mm Corotherm sheets, ensuring versatile applications. Thanks to its rubber gaskets, this glazing bar is quick and easy to install.

Features & Benefits: Corotherm Glazing Bar Cap & Base With End Cap

Comes equipped with rubber gaskets
Suitable for 10mm, 16mm and 25mm sheets
Available in a range of colours and lengths
Quick and easy to fit
Sleek and attractive finish
Provides support and structural integrity

Please note:

These products cannot be manually offloaded on delivery, if you do not have offloading and required assistance please contact our sales team prior to ordering.

Specification

Dimensions

Length 3000mm
4000mm
6000mm

Details

Thickness 10mm
16mm
25mm Colour Brown
White Material PVC

Downloads

Product Brochure

Questions & Answers

Question:

Please could you send cross sectional drawing so I can work out my centres for 700mm wide sheets?

Answer:

I have emailed you a drawing with the dimensions

Question:

Is there a gable version of this product, or a filler/ insert piece to cover and extend the “open” side?

Answer:

You will need something like this link

https://www.roofingsuperstore.co.uk/product/corotherm-16mm-pvc-side-flashing-16mm-x-3m-white-pack-of-2.html

Question:

Can these be cut to length? I have an old lean to I want to re-roof that i sonly 2m wide, so can I buy the 6m lengths, cut them into three and buy additional end caps?

Answer:

You can only cut it down, you would not be able to get 3 bars from one unit as the end caps will not fit. You would need to buy 3 x 3m and cut them down

Question:

What is the width?

Answer:

The width of the glazing bar is 47mm

Question:

How many millimetres does it add to width whe joining 600mm sheets together

Answer:

I will email you a technical drawing of the bar itself

Question:

What is the width of the corotherm glazing bar base. Is the sealing strip included when purchased

Answer:

Good Morning Peter

I have sent you a personal email with a PDF showing the sizes. And Yes it comes with the sealing strip as standard.

Question:

What width is it?

Answer:

The base of this unit is 47mm wide.

Question:

what is the height of the glazing bar? I know this can accommodate up to 25mm sheets but I'm only using 10mm

Answer:

This Glazing bars is also suitable for use with the 10mm sheets.

Question:

Do the Clear Cut Length meet up in the bar or is there a gap between the sheets. E.g. The width is 2700mm I'm using 3 bars. Will the overall width still be 2700mm or do I have to add 10/20mm per bar?

Answer:

The glazing bars have a 10mm wide channel down the middle of them so you can take a little off the sheets to compensate, or they can always be trimmed slightly on site if needs be.

Question:

HOW WIDE IS THE PRODUCT ie I INTEND TO USE 45MM WIDE RAFTERS THANKS

Answer:

The base of the glazing bar is 42mm wide so will be fine to use on your 45mm rafters.

Question:

How do you fasten bars to purlins/rafters?

Answer:

You need to drill holes in the aluminium base to fix through onto the rafters.

Question:

my roof is 8mts long can the sheets be jointed end on, is there jointing strip.

Answer:

I am afraid there is not a jointing strip to join end on and the max length of the sheets is 6m, apologies.

Question:

Hi, is it possible to get a small sample (5 cm?) to check if it will fit on existing roof joists ? Also, can one purchase the cap part on its own without the base ? I think we already have these bases but most of the caps have warped or broken.

Answer:

Unfortunately samples of these items are not available, if you email us images of the ones you have to sales@roofingsuperstore.co.uk we can check if they match or not for you.

Question:

Can these be used with solid polycarbonate sheets?

Answer:

No, sorry. We do not offer any accessories for solid polycarbonate sheets.

Question:

I only need the glazing bar to be 2500mm in length. Can I buy the 3000mm length and cut it to size?

Answer:

Yes you can, these can be cut down to the size you need.
