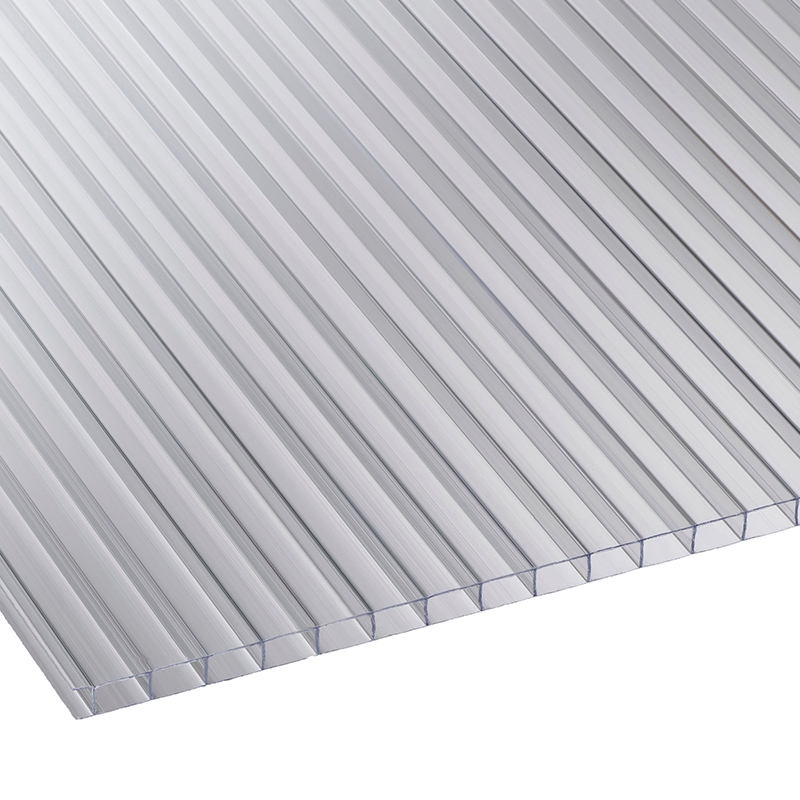

Corotherm 10mm Clear Twinwall Polycarbonate Roof Sheet - 4000mm x 2100mm

Code:

76200

Brand:

Corotherm

Perfect for constructing greenhouses, carports, sunscreens and a range of DIY glazing projects, these clear UV resistant 10mm thick Twinwall Corotherm glazing sheets are a lightweight and impact-resistant solution made from hardwearing and durable polycarbonate. Not only are th... Read More

View full product details

View questions about this product

Size

£149.94 Incl. VAT

Earn points

Est. Delivery: 3-5 Working Days

Shipping costs displayed in basket.

View Transport Policy

View full product details

View questions about this product

Create a wishlist

Ian

Description

Not only are these sheets UV resistant, protecting them from damage caused by the sun's ultraviolet rays, but Corotherm also ensures minimum condensation risk. Its Class 1 Fire-rating is also the best fire rating of materials that can be achieved.

Features & Benefits: Corotherm 10mm Clear Twinwall Polycarbonate Roof Sheet - 4000mm x 2100mm

A range of lightweight clear 10mm thick glazing sheets that are strong, durable and resistant to impact
Ideal for a range of projects, including greenhouses, carports, porches, conservatories and more
Available in a wide range of sizes
Easy to cut without the risk of the sheets shattering or cracking
UV resistance will protect the sheets from ultraviolet rays
Minimum risk of condensation
Fire-rated Class 1 for safety
Thermally insulating with a U-value of 3.2W/m²K
82% light transmission
High strength-to-weight ratio
Sheets are easy to maintain and will, largely, clean themselves
10-year guarantee/warranty

Easy to handle and install, thanks to its lightweight construction, Twinwall Corotherm can be cut with ease without the risk of it shattering or cracking. The sheets also only require a low-modulus neutral cure sealant and cross-linked butyl flashing tape.

Once installed, these low-maintenance sheets are also quick and easy to clean, with the sheets being largely self-cleaning, a particularly useful feature for sheets installed in hard-to-reach locations.

Standards & Certification

Fire Rating: Class 1

Please note:

When installing Corotherm sheets it is important to allow a sufficient expansion gap at the top end of the sheet.
When drilling fixing holes an expansion allowance of 3mm around all fixings is required.
Do not fix or clamp sheets too tightly - leave room for thermal movement.
This roof sheet should be placed with a minimum of a 10° roof slope for water drainage.
Orders over 50 sheets will need a forklift on site and if this is not available then we can arrange a split delivery however this will extend the lead time. If needed we can help arrange delivery with a special courier with an offload however this will be an extra charge.

Specification

Dimensions

Length 4000mm Size 4000mm x 2100mm Width 2100mm

Details

Thickness 10mm Colour Translucent Material Polycarbonate

Downloads

Questions & Answers

Question:

What do I use to join the sheets?

Answer:

You will need the glazing bars. Please see below the different sizes we offer:

https://www.roofingsuperstore.co.uk/product/corotherm-3m-white-glazing-bar-cap-base-with-end-cap-suitable-for-25mm.html

https://www.roofingsuperstore.co.uk/product/corotherm-4m-white-glazing-bar-cap-base-with-end-cap-suitable-for-25mm.html

https://www.roofingsuperstore.co.uk/product/corotherm-rafter-glazing-bar-capbase-and-end-cap-white-6m-each.html

Question:

Do the wide sheets (2100 width) need a wooden support in the middle as well as the two sides being fixed? What spacing is recommended for purlins?

Answer:

Please call in and speak with one of the agents as each job is different
