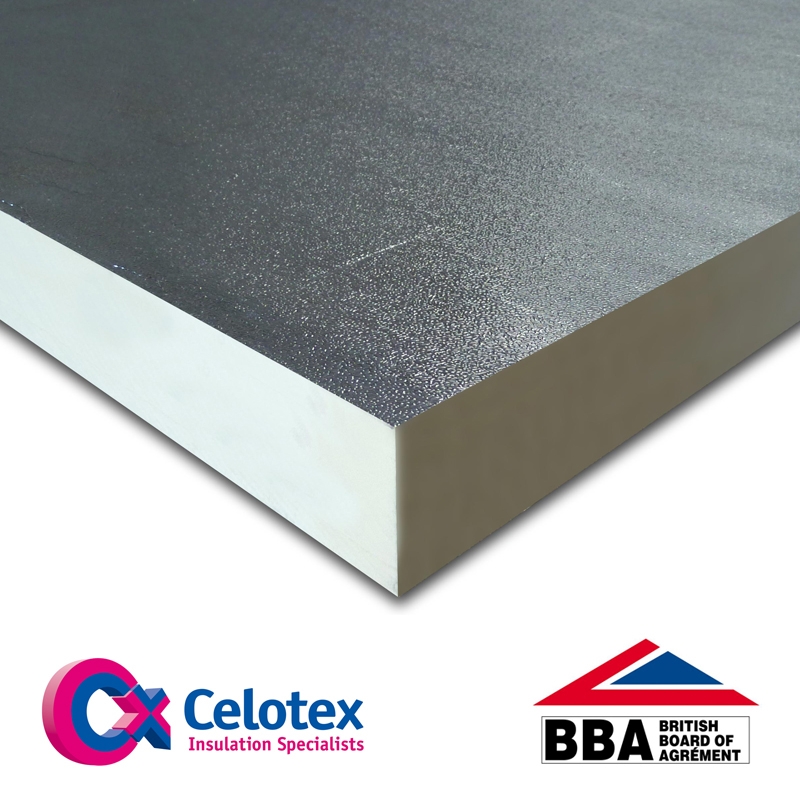

Celotex FR5100 Fire Rated Insulation Board 100mm - 34.56m2 Pallet

Name: Celotex FR5100 Fire Rated Insulation Board 100mm - 34.56m2 Pallet
Brand: Celotex
SKU: 653246
Availability: LimitedAvailability

Code:

653246

Brand:

Celotex

Celotex FR5000 is our premium performance PIR solution. With super low emissivity textured aluminium foil facings, FR5000 is manufactured from rigid polyisocyanurate (PIR) using a blowing agent that has low global warming potential (GWP) and zero ozone ... Read More

View full product details

View questions about this product

Create a wishlist

Darren Holmes

Description

Through ongoing product innovation and breakthrough design, FR5000 represents pioneering progression within the PIR market offering an insulation board with enhanced thermal performance as well as an A+ rating when compared to the BRE Green Guide, Class O fire performance and super low emissvity values with Celotex IQ.

Properties
Length : 2.4m.
Width : 1.2m.
Thickness : 100mm.
Pack quantity : 12x sheets.
Coverage : 34.56m2.
Thermal conductivity : 0.021 W/mK.
Thermal resistance : 4.75 m²K/W.
Fire rating : Class 1 - BS 476 (part 7).
Certification : BBA certified.
Facing : super low emissivity textured aluminium foil facings.
Weight : 3.38kg/m2.

With Celotex FR5000 you are specifying an insulation board that :
• Has a lower thermal conductivity value (0.021W/mK) compared with other typical PIR insulation boards providing enhanced thermal performance.
• Has super low emissivity with Celotex IQ, delivering some of the highest rigid board insulation solutions.
• Achieves an A+ rating when compared to the BRE Green Guide.
• Has Class O fire performance throughout the entire product in accordance with BS 476.
• Is available in a broad range of thicknesses from 25mm-150mm.
• Is suitable for a range of applications.

Applications
Celotex FR5000 can be specified for use in a variety of applications including :

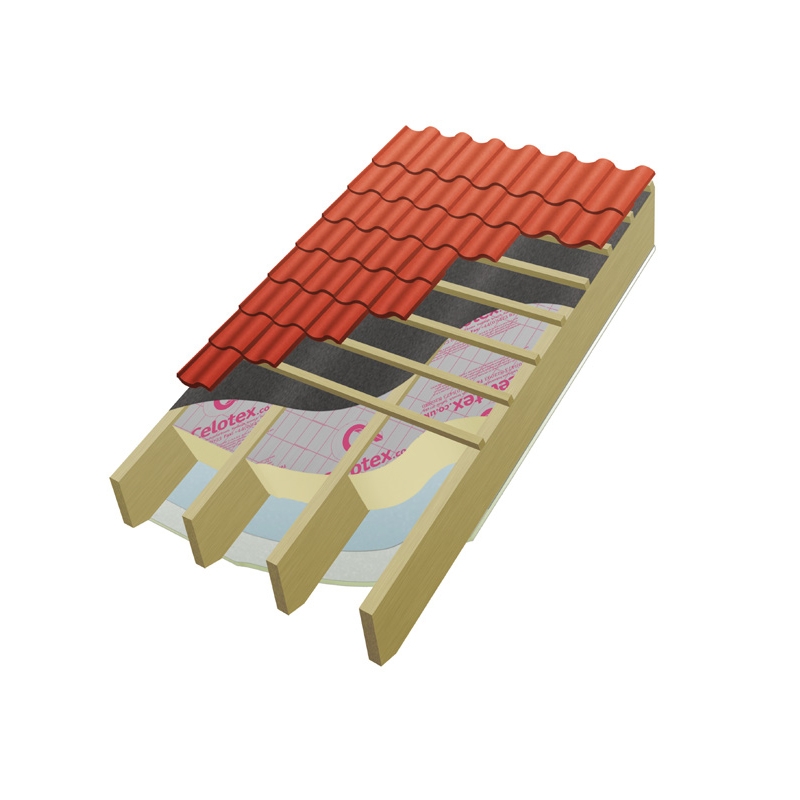

• Pitched roofs

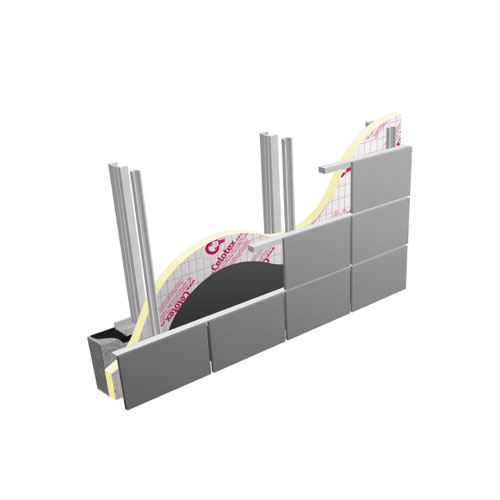

• Walls
• Floors

Specification clause
The insulation shall be Celotex FR5000 - 90mm thick, comprising a polyisocyanurate rigid foam insulation core featuring Celotex IQ providing super low emissivity, textured aluminium foil facings on both sides and Class O fire performance throughout the product in accordance with BS 476. FR5000 is A+ rated when compared to the BRE Green Guide and is CFC/HCFC free with low GWP and zero ODP and CE marking compliance to BS EN 13165. FR5000 is manufactured in accordance with quality management systems ISO 9001 and environmental management system ISO 14001. All products must be installed in accordance with instructions issued by Celotex Limited.
