Looking to create completely flat paved surfaces on decks built-to-falls? Wallbarn ASP adjustable paving pedestals are the perfect solution to support paving slabs, promenade tiles on flat roofs , balconies, terraces and podium decks. Even flat roofs are built to a small fall... Read More
Looking to create completely flat paved surfaces on decks built-to-falls? Wallbarn ASP adjustable paving pedestals are the perfect solution to support paving slabs, promenade tiles on flat roofs , balconies, terraces and podium decks.

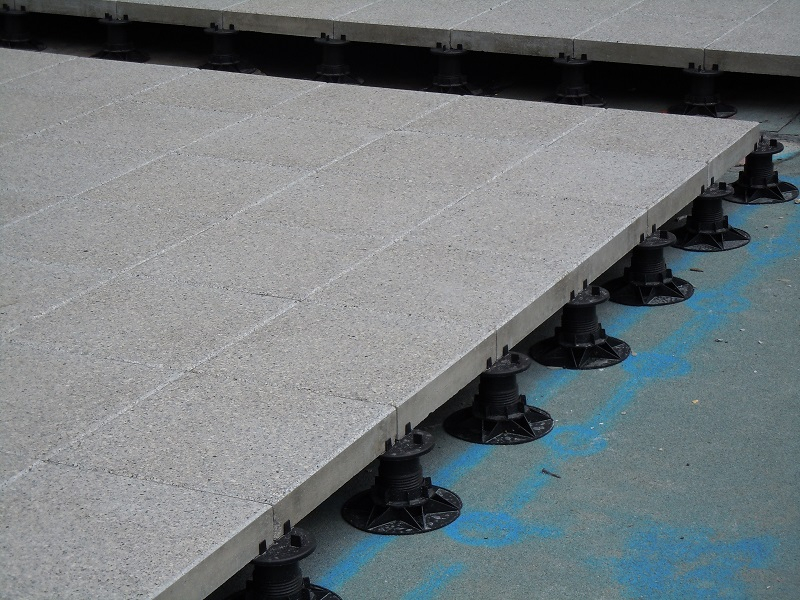

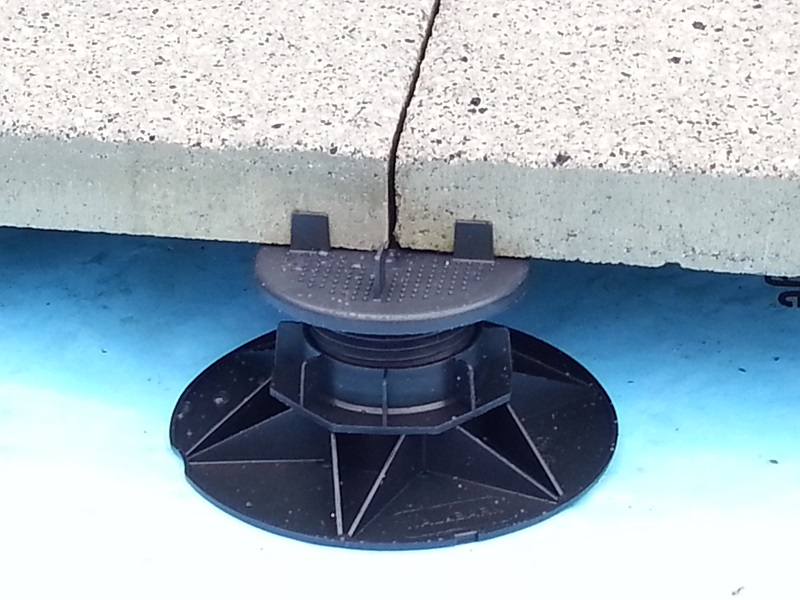

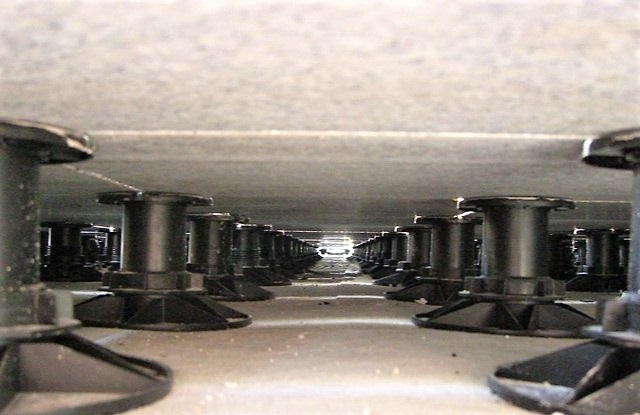

Even flat roofs are built to a small fall to allow adequate drainage. ASP pedestals have a telescopic stem which is wound up and down to create millimetre precise changes in height achieve a completely flat upper paving surface. Positioning lugs create a clear spacing between each slab which allows drainage and gives a clear, uniform paving line between slabs. The rainwater runs between and under the slabs, so there is no standing water left on the surface. They create a cavity between the sub-deck and the paving slabs which helps ventilate the structure and allows services such as pipes and cables to be hidden from view.
ASP Adjustable paving pedestals are available in heights from 25mm up to 380mm. They are manufactured from polypropylene and can tolerate up to 1 tonne in weight per unit. They will not become brittle in low temperature. ASP pedestals have been tested using the CATAS procedure for Compressive Strength at +20°C and - 40°C. See technical data below for details.

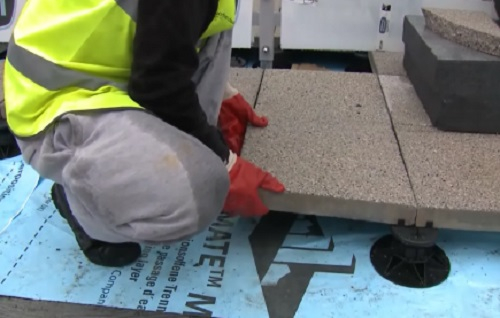

This is a suspended system – the weight of the slab holds everything in place. Changes to height can be made whilst the slab is in place. This saves a great deal of time and labour.
A range of different lug size, slope correctors, levelling shims and accessories are available for use with ASP adjustable paving pedestals from Wallbarn.
Material: Virgin fibre injection moulded polypropylene
Weight Tolerance: Maximum Load 11,493 N = 1,171kg
End of Linear Behaviour at 6,700N = 683kg
Max Temperature: Plus 75° C
Min Temperature: Minus 40°C
Base Plate Diameter: 200mm or 150mm
Headpiece Diameter: 120mm
Lug Dimensions: 2.2 x 18mm, 4 x 18mm, 6 x 18mm, 10 x 18mm, 2.2 x 10mm
